Medimages ECG-601 6-Channel ECG Machine

New

4.1|7 Ratings

₹28,000₹40,00030% off

Quantity :

Specifications

Channels : 6 Channels
Lead System : Standard 12-Lead
Display : 5.7-inch / TFT LCD Display
Recording Method : Thermal Printing
Printer Type : Built-in High Resolution Thermal Printer
Paper Width : 80 mm
Sensitivity : 2.5, 5, 10, 20 mm/mV Adjustable
Paper Speed : 5, 10, 25, 50 mm/s
Frequency Response : 0.05 Hz – 150 Hz
Filters : AC, EMG, Drift, Low-pass Filters
Input Circuit : Floating, Fully Isolated
Data Storage : Internal Memory with USB Export
Connectivity : USB
Power Supply : AC + Rechargeable Battery
Battery Type : Rechargeable Lithium Battery
Dimensions : Approx. 300 × 260 × 70 mm
Weight : Approx. 2.5 kg
Usage Type : Resting ECG
Machine Type : Digital Portable ECG Machine

highlights

Compact portable ECG machine with 6-channel printing
Simultaneous 12-lead waveform acquisition
User-friendly touchscreen/LCD interface
Built-in rechargeable battery for uninterrupted operation
High-quality thermal printing system
Advanced filtering technology for accurate readings
Data export through USB support
Suitable for high-volume clinical environments

in the box

Medimages ECG-601 6-Channel ECG Machine

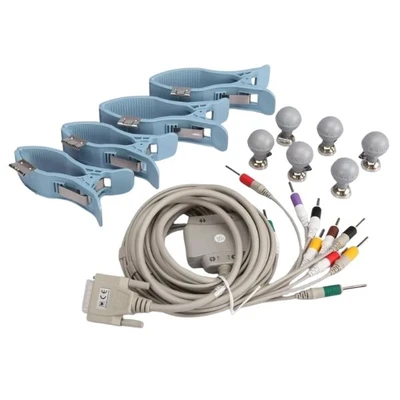

Patient cable
Limb electrodes
Chest electrodes
Power cord
Rechargeable battery
ECG recording paper
User manual
Warranty card

Use Cases :

Routine cardiac examinations in hospitals
ECG monitoring in clinics and nursing homes
Emergency cardiac assessment
Cardiology diagnostic procedures
Bedside patient monitoring
Health screening camps and mobile healthcare services
Monitoring arrhythmias and cardiac abnormalities

Key Features :

6-channel simultaneous ECG recording
12-lead ECG acquisition system
High-resolution LCD/TFT display
Built-in thermal printer for instant ECG reports
Automatic measurement and interpretation
Digital signal processing with anti-noise filters
USB connectivity and internal memory storage
Rechargeable lithium battery with AC power support
Portable and lightweight design
Adjustable sensitivity and paper speed settings

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Medimages ECG-601 6-Channel ECG Machine is a compact and portable 6-channel digital electrocardiograph designed for accurate cardiac monitoring in hospitals, clinics, and diagnostic centers. It supports simultaneous 12-lead ECG acquisition and provides clear waveform display with automatic measu...
