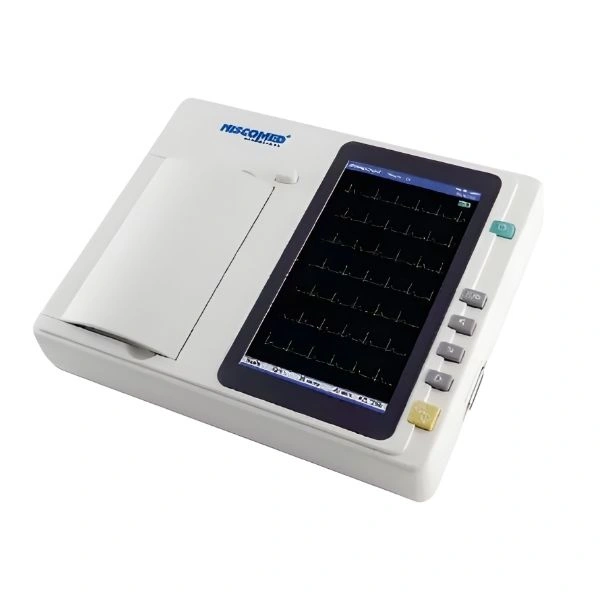

Niscomed Flight-601 6-Channel ECG Machine

New

Specifications

Leads : Standard 12 leads, simultaneous acquisition
Display : 7" Color Graphic LCD/Touch Screen (480 x 680 pixels)
Recording Mode : Thermal printing system; Roll paper 110mm x 20m
Operation Modes : Manual, Auto, and Rhythm Analysis
Frequency Response : 0.05Hz to 150Hz
Common Mode Rejection (CMRR) : >60 dB (some variants list >100 dB)
Input Impedance : ≥50MΩ
Battery Type : Built-in rechargeable Li-ion/Lithium Polymer
Battery Backup : Up to 4 hours of operating time
Memory : Internal: 250–1000 reports; External: SD Card support
Weight : Approximately 3 kg
Safety Standard : IEC Class I, Type CF (Defibrillation protection)

highlights

Efficiency: Features a "one-button" recording mode in AUTO setting to reduce the doctor's workload.
Display Clarity: High-resolution screen (480x680) allows for detailed real-time waveform monitoring.
Power Versatility: Equipped with a built-in rechargeable lithium-ion battery for up to 4 hours of uninterrupted operation.
Multi-language Support: Interface and reports available in over 10 languages, including English, French, and Spanish.

in the box

Niscomed Flight-601 ECG Machine
Patient Cable (10-lead)
Power Cord
Set of Chest Electrodes (Suction type)
Set of Limb Electrodes (Clamp type)
Thermal Paper Roll
User Manual and Warranty Card

Use Cases :

Clinical Diagnostics: Ideal for hospitals and clinics requiring fast, reliable ECG analysis for routine checkups.
Cardiovascular Assessments: Used by healthcare professionals for precise monitoring and interpretation of cardiac rhythms.
Portable Healthcare: Suitable for mobile medical camps or emergency units due to its lightweight design and battery operation.
Pediatric & Adult Care: Designed to acquire and interpret ECG leads for patients of all ages.

Key Features :

Touch Screen Interface: 7-inch color graphic LCD/touch screen for intuitive control.
12-Lead Acquisition: Simultaneous acquisition and display of all 12 standard leads.
Advanced Filtering: Complete digital filters to eliminate EMG, AC, and baseline drift interference.
Automatic Interpretation: Built-in software for automatic measurement and diagnosis of routine ECG parameters.
High Capacity Storage: Internal memory for up to 1,000 cases, with support for external SD cards.
Connectivity: USB and LAN ports for PC data transmission and software playback.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Niscomed Flight-601 6-Channel ECG Machine is a portable diagnostic tool featuring a 7-inch high-resolution color touch screen for clear cardiac waveform visualization. It utilizes advanced digital signal processing to provide high-quality ECG waveforms by filtering out baseline drift and muscle ...
