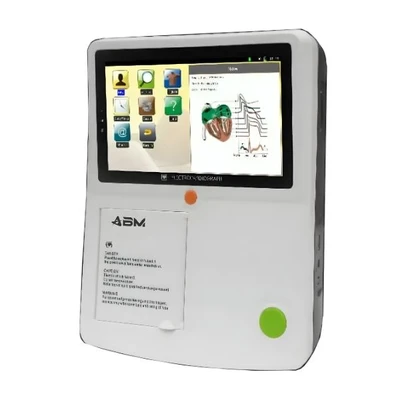

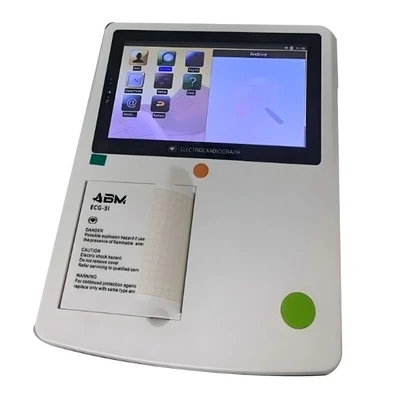

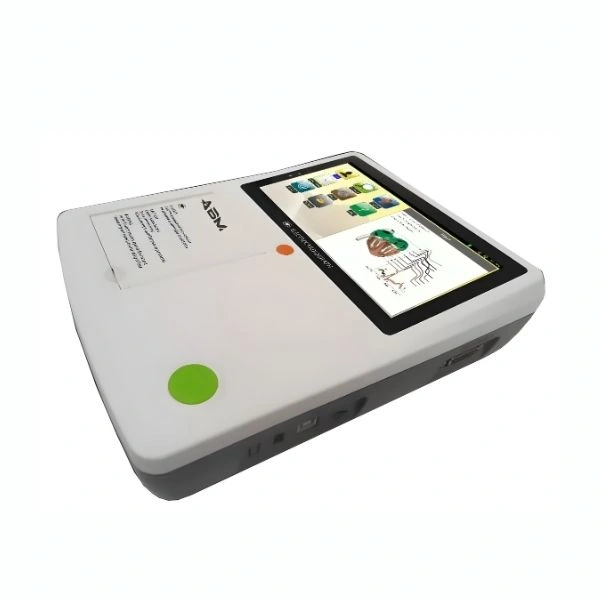

ABM 3I 3 Channel ECG Machine

New

4.3|55 Ratings

₹28,100₹35,00020% off

Quantity :

Specifications

Product Name : ABM 3I 3 Channel ECG Machine
ECG Channels : 3 Channel
Lead System : Standard 12-Lead
Display : LCD Display
Recording Method : Thermal Printing
Print Width : 80 mm
Paper Speed : 25 mm/s, 50 mm/s
Sensitivity : 2.5, 5, 10, 20 mm/mV
Frequency Response : 0.05 – 150 Hz
Input Impedance : ≥ 50 MΩ
Common Mode : Rejection Ratio (CMRR) ≥ 100 dB
Heart Rate : Measurement Range 30 – 300 bpm
Operating Modes : Auto / Manual
Noise Level : ≤ 15 μVp-p
Power Supply : AC 110–240 V, 50/60 Hz
Battery Rechargeable : Li-ion / SLA
Battery Backup : Approx. 2–3 hours
Safety Standard : IEC / CE compliant
Portability : Desktop / Portable
Weight (Approx.) : 2.5 – 3.5 kg
Warranty : Typically 1 Year

highlights

Simultaneous 3-channel printing improves diagnostic speed
Easy-to-operate interface suitable for daily clinical use
Portable with battery backup for uninterrupted operation
Clear waveform quality with reliable measurements
Cost-effective solution for routine ECG testing

in the box

ABM 3I 3 Channel ECG Machine
Patient Cable (10-lead)
Limb Electrodes (4 Nos.)
Chest Electrodes (6 Nos.)
ECG Thermal Paper Roll
Rechargeable Battery (built-in)
Power Cord
User Manual

Use Cases :

General hospitals and nursing homes
Cardiology departments
Diagnostic centers
Outpatient clinics (OPD)
Emergency rooms & casualty wards
Bedside and mobile cardiac assessment

Key Features :

3-channel simultaneous ECG recording
High-resolution LCD display for waveform preview
Built-in thermal printer for instant ECG reports
Automatic & manual operating modes
Rechargeable internal battery for portable use
Multiple lead acquisition (12-lead ECG)
Heart rate calculation and rhythm analysis
Lightweight and compact design
Low noise, high signal accuracy

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The ABM 3I 3 Channel ECG Machine is a compact, reliable electrocardiograph designed for accurate recording of cardiac electrical activity. It records and prints 3 ECG channels simultaneously, providing clear waveforms for effective cardiac diagnosis. With a built-in thermal printer, rechargeable bat...
