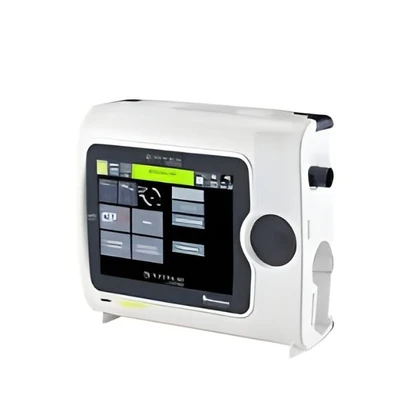

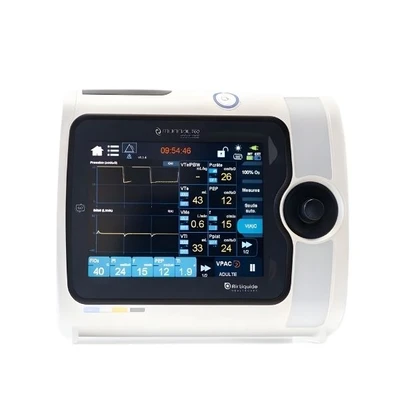

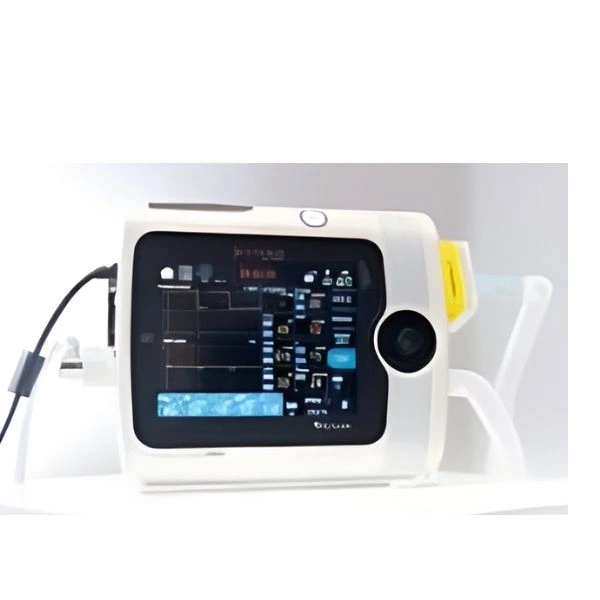

Air Liquide Monnal T60 Advanced Ventilator

New

₹14,04,000₹1,619,99613% off

Specifications

Patient Range : Infants (> ~3 kg), Pediatric, Adult
Ventilation Modes : VCV, PCV, PSV, SIMV, CPAP, NIV, APRV, CPV
Display : 8.4″ colour touchscreen (640 × 480)
Tidal Volume Range : ~20 – 2000 mL
Respiratory Rate : Approx. 1 – 60 bpm
FiO₂ Range : 21 – 100 %
Peak Flow : ~230 L/min
Battery Backup : Internal + removable (~5 h total)
Weight : ~3.7 kg (≈4 kg with batteries)
Dimensions : ~29 × 25 × 11 cm
Operating Noise : ~48 dB(A) at 1 m
Protection Class : IP34 (splash & dust)

highlights

✔️ Compact, lightweight design enhancing mobility and transport usability.
✔️ Turbine-driven ventilation requiring only oxygen supply — no compressed air.
✔️ Broad range of invasive & non-invasive modes including advanced APRV and CPV.
✔️ Built-in high-flow nasal oxygen capability.
✔️ Long autonomy (battery power) and robust alarms support critical care continuity.

in the box

Monnal T60 Advanced ventilator unit
Internal and removable battery pack
AC power cable
Oxygen supply hose / connectors
Patient breathing circuit and filters
User manual & quick start guide
Battery charger / docking station

Use Cases :

Intra-hospital emergency and transport ventilation
Mobile intensive care units
Emergency medical services
Anesthesiology and respiration therapy
Critical patient care (neonates to adults)
Situations requiring high-flow oxygen therapy

Key Features :

Lightweight and Compact Design
Supports Invasive and Non-Invasive Ventilation (NIV, CPAP, APRV)
Automatic Pressure Compensation
Automatic Leak Detection and Compensation
Wide Range of Ventilation Modes (PS-Pro, PSIMV, PRVC)
Adaptable for Adults, Children, and Infants (from 3 kg)
Large 8.4-inch, 262k color LCD Touchscreen (640x480 resolution)
High Brightness LED Backlight with Adjustment (800 cd/m², day/night display)
Air Transport Certified (EN 13718 and RTCA DO-160F, 20G resistance)
5-hour Autonomy (extendable with interchangeable batteries)
Adjustable PEEP (0 to 100 cmH2O)
Adjustable FiO2 (21 to 100%)
Comprehensive Monitoring Parameters (including etCO2 option)
Visible and Adjustable Alarms (Low/high pressure, patient disconnection, etc.)
Ergonomic Grip and Carry Handle

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Air Liquide Monnal T60 Advanced Ventilator is a high-performance, turbine-driven ventilator designed to provide invasive and non-invasive respiratory support for critically ill patients — from infants (typically ≥ 3 kg) to adults. It integrates advanced ventilation modes and monitoring within a ...
