Philips Trilogy EV300 Portable Hospital Ventilator

New

Specifications

Patient Range : Pediatric to Adult (≥ 2.5 kg)
Ventilation Modes : A/C-PC, A/C-VC, CPAP, PSV, S/T, SIMV-PC, SIMV-VC, AVAPS-AE
Tidal Volume : OFF, 10–2000 mL (patient-dependent)
Respiratory Rate : 0–90 BPM
Minute Ventilation : OFF, 0.2–30 L/min
Inspiratory Pressure (PIP) : 1–90 cm H₂O
PEEP / EPAP/CPAP : 0–35 cm H₂O (active), 3–25 cm H₂O (passive)
Triggering : Auto-Trak / Sensitive Auto-Trak / Flow Trigger
I:E Ratio : 9.9:1 to 1:9.9
FiO₂ Range : 21 %–100 %
Display : 20.32 cm (8″) touchscreen
Weight : ~6.3 kg with battery
Dimensions : ~19.3×28.6×24.5 cm
Battery Runtime : ~15 hours total (two hot-swappable batteries)
Electrical Input : 100–240 VAC, 50/60 Hz
Alarms : Inspiratory pressure, tidal volume, apnea, circuit disconnect, RR, etc.
Ingress Protection : IP22 (drip protection)

highlights

Versatile ventilation across chronic, acute, and critical care environments
Adaptive ventilation modes with auto-titrating support (AVAPS-AE & Auto EPAP)
User-centric interface greatly reduces setup time and simplifies clinical workflows
Real-time data display of pressure, volume, flow curves and alarms
Enhanced patient comfort and synchrony via sensitive triggering and adaptive cycling
Built-in communication interfaces allow integration with hospital information systems (e.g., HL7 for data export)

in the box

Philips Trilogy EV300 Ventilator
Power Adapter / AC Cable
Hot-Swappable Li-ion Battery Pack(s)
Breathing Circuit (appropriate patient circuit)
User Manual / Quick Start Guide

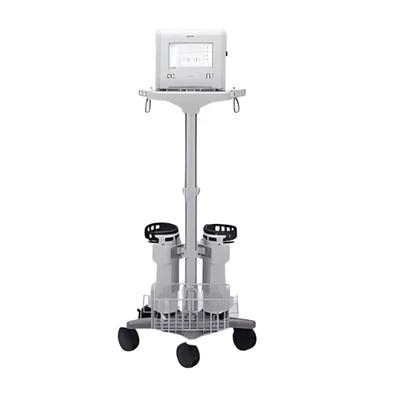

Optional accessories: carry handles/roll stand mounts (depending on package)

Use Cases :

Acute care settings
Chronic care environments
Patient transport within and between facilities (e.g., ambulances, aircraft)
General hospital ventilation needs
Weaning trials

Key Features :

Supports both invasive and non-invasive ventilation for a wide range of patients (from ~2.5 kg to adult)
Multi-mode ventilation: volume and pressure control, pressure support, CPAP/S/T, SIMV, AVAPS-AE
8-inch colour touchscreen with intuitive menu navigation for fast setup and monitoring
Advanced adaptive algorithms such as Auto-Trak and Digital Auto-Trak for improved patient-ventilator synchrony
Integrated monitoring: SpO₂, EtCO₂ (with accessory), dynamic lung parameters, alarms for all critical parameters
Portable design: hot-swappable Li-ion batteries with long run-time and easy transportability
Modular oxygen blending supports precise FiO₂ delivery (21–100%)
Shock and vibration resistance for smooth inter-department transport

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips Trilogy EV300 Portable Ventilator redefines patient respiratory care with its combination of advanced technology and clinician-friendly design. Engineered for both sub-acute and chronic care settings, this versatile ventilator delivers both non-invasive (NIV) and invasive (IV) ventilatio...
