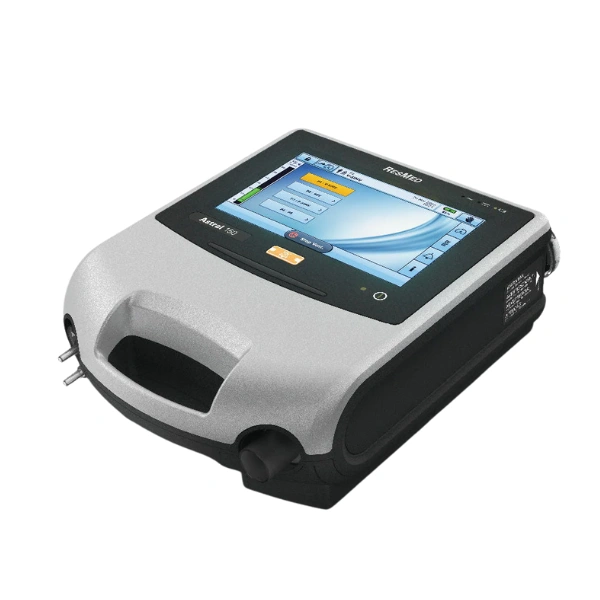

ResMed Astral 150 Life Support Ventilator

New

Specifications

Dimensions: 285 mm x 215 mm x 93 mm
Weight: 3.2 kg (7.1 lbs)
Internal Battery: Lithium-Ion battery, 14.4 V, 6.6 Ah, 95 Wh (8 hours of backup power)
Sound Power Level: 43 ± 3 dBA (measured to ISO 80601-2-12:2011)
Sound Pressure Level: 35 ± 3 dBA (measured to ISO 80601-2-12:2011)
Delivered Pressure (leak circuit): 2–50 cmH2O
Delivered Pressure (valve circuit): 0–50 cmH2O
Delivered Tidal Volume (Adult): 100–2500 mL
Delivered Tidal Volume (Pediatric): 50–300 mL
Respiratory Rate (Adult): Off, 2–50 bpm
Respiratory Rate (Pediatric): Off, 5–80 bpm
CIRCUIT TYPES: Single circuit with leak, Single circuit with valve, Double circuit (Astral 150 only)
CLASSIFICATIONS: Medical electrical equipment - general requirements for basic safety and essential performance. Class II (double insulation) Type BF Continuous
Oxygen Inlet: Low flow oxygen input (up to 30 L/min)

highlights

Advanced Life Support: A lightweight, portable life-support ventilator designed for both invasive and non-invasive ventilation.
Exceptional Portability: Weighing just 3.2 kg (7.1 lbs), it offers enhanced freedom and mobility.
Extended Battery Life: Features an internal 8-hour Lithium-Ion battery for reliable power on the go.
Versatile Therapy Options: Provides a comprehensive range of therapy modes suitable for adult and pediatric applications.
User-Friendly Interface: Designed for straightforward and efficient ventilation support with an intuitive touch screen display.
Optional Monitoring: Includes an optional FiO2 sensor for enhanced monitoring capabilities.

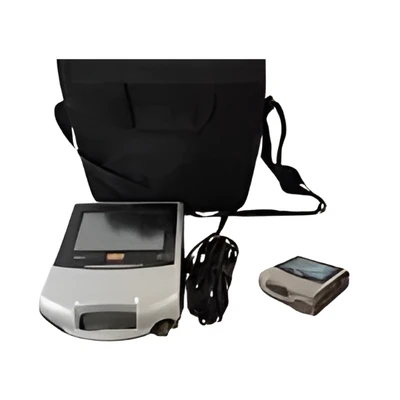

in the box

ResMed Astral 150 ventilator unit
Internal battery
Power supply/AC adapter
Carry bag
Ventilation circuit/tubing
User Manual & Documentation
Installation kit

Use Cases :

Home ventilation
Hospital mobility
Patients with changing ventilatory needs
Invasive and non-invasive ventilation applications
Pediatric and adult applications

Key Features :

Invasive and non invasive, adult to peadiatric usage
In built battery back up of upto 8 hours, which can be extended upto 24 hours with external battery pack
4 customizable pre set programs
Single limb circuit with leak and valve ventilation
Dual limb circuit
Apnoea Ventilation
Manual breath
Sigh Breath
Optional SpO2 monitoring
FiO2 monitoring
7 days of high resolution data with 25Hz pressure and flow
365 days of summary data
Wide range of settable alarms, including SpO2 and FiO2, when connected

THERAPY MODES :

Valve circuit therapy: CPAP, ACV, PACV, P-SIMV, V-SIMV, PS
Leak circuit therapy: CPAP, ST, PAC
Additional modes: Manual breath, Sigh breath (recruitment), Apnoea ventilation

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

Resmed's Astral 150 life support ventilator offers excellence in invasive and non invasive ventilation without compromise. From initial setup to everyday use, Astral offers greater freedom, confident care and designed efficiency to enrich life for you and your patients. Astral's discreet and lighwei...
