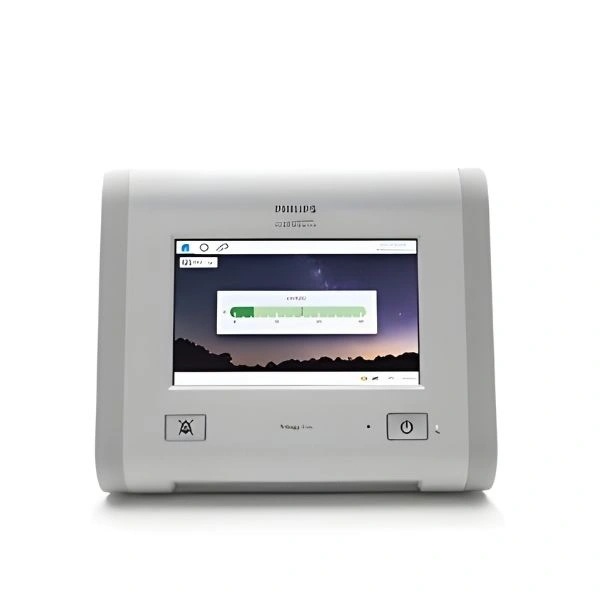

Philips Trilogy Evo Ventilator (Refurbished)

New

₹3,50,000₹760,00054% off

Specifications

Display : 8″ touchscreen
Weight : ~5.2 kg
Dimensions : 16.5 cm D × 28.6 cm W × 24.5 cm H
Battery Life : Up to ~15 hours combined (internal + detachable)
Ventilation Modes : A/C-PC, A/C-VC, CPAP, PSV, S/T, SIMV-PC/VC, MPV-PC/VC, AVAPS-AE
Tidal Volume Range : 10 – 2000 ml
Respiratory Rate : 0 – 90 BPM
Low Flow Oxygen : 0 – 30 l/min
High Pressure Oxygen : 280 – 600 kPa
FiO₂ Range : 21 – 100 % with sensor
Alarms : Pressure, tidal volume, apnea, disconnection, etc.
Ingress Protection : IP22 (drip protection)
Monitoring Support : Optional SpO₂/EtCO₂ with accessories

highlights

Hospital-to-Home Capability — Seamless care transition between settings.
Advanced Synchronization with patient breathing for comfort.
Long Battery Life for mobility and transport support.
Flexible Modes & Monitoring
Intuitive User Interface with alarms and prompts.

in the box

Philips Trilogy Evo ventilator
Detachable battery (or batteries)
AC power cable + adapter
DC power cable (for vehicle power)
Breathing circuit(s) (single or dual limb)
Oxygen supply hose
Patient filters & sensors (e.g., flow/CO₂/SpO₂ accessories, if bundled)
User manual / quick start guide

Use Cases :

Institutional Settings: Hospitals, skilled nursing facilities, and other healthcare environments.
Home Care: Providing continuous or intermittent ventilation support for individuals in their homes.
Non-Emergency Transport: Facilitating safe and effective ventilation during wheelchair transport or personal vehicle travel.
Rental or Purchase Programs: Offering end-to-end solutions for DME providers to manage patient care in skilled nursing facilities.

Key Features :

Patient Range: Pediatric through adult patients weighing at least 2.5 kg.
Ventilation Modes: Supports continuous or intermittent positive pressure ventilation.
Invasive and Non-Invasive Support: Offers flexibility in ventilation delivery.
Up to 15 Hours Battery Life: Extended operation for enhanced mobility.
User Interface: Clinician-friendly and patient/caregiver-friendly interfaces.
Data Monitoring: Measures, displays, records, and alarms SpO2, FiO2, CO2, and Pulse Rate (with appropriate accessories).
Connectivity: Integrates with electronic medical records and connects wirelessly to the cloud.
Portability: Mounts on wheelchairs and includes a carrying bag.
Prescriptions: Ability to save multiple prescriptions.
Durability: Robust and durable design for reliable performance.
Ambient Light Sensor: Automatically adjusts screen brightness.
Field Serviceability: Designed for servicing with standard tools.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Philips Trilogy Evo Ventilator is a sophisticated and adaptable respiratory support solution designed to meet the diverse needs of patients from pediatric to adult stages. Engineered for both invasive and non-invasive ventilation, this device ensures comprehensive care across various clinical se...
