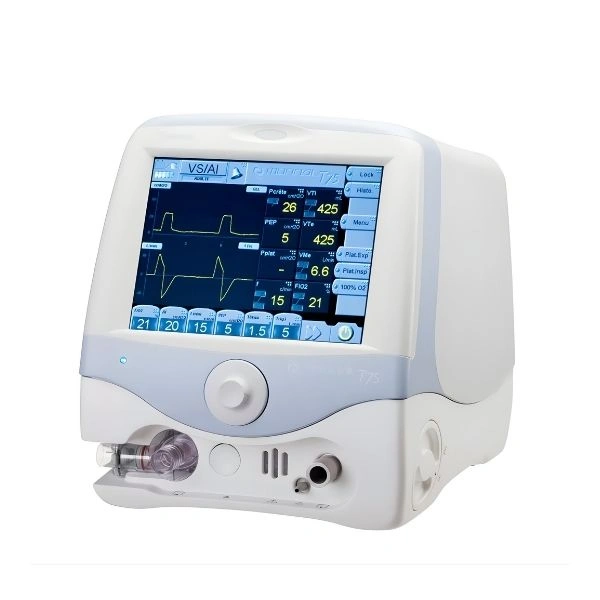

Air Liquide Monnal T75 ICU Ventilator

New

Specifications

Patient Categories : Adult, Pediatric, Infant
Ventilation Modes : VCV, PCV, SIMV, PSIMV, PSV, CPAP, PRVC, APRV, Duo-Levels, PS-Pro
Tidal Volume Range : 20 – 2000 mL
Respiratory Rate : 4 – 120 bpm
Pressure Range : 2 – 99 cmH₂O
Display : 10.4″ TFT-LCD touchscreen
Battery Backup : ~2.5–3 hours
Weight & Dimensions : ~16 kg; ~35 × 30 × 40 cm
Oxygen Supply : 2 – 80 L/min
Monitoring : Pressures, volumes, respiratory mechanics, CO₂ (optional)

highlights

✔️ All-in-one ICU ventilator: combines invasive, non-invasive, and high-flow support.
✔️ Turbine-based autonomy: works without external gas sources and enables transport use.
✔️ Large, intuitive touchscreen with rich real-time data visualization.
✔️ Advanced patient comfort features like leak compensation and sensitive trigger.
✔️ Integrated safety systems: filters, alarms, and monitoring for critical care.

in the box

Monnal T75 ventilator unit
Breathing circuit(s) and sensors
Power cable
HEPA & Clean’In filter set
User manual and warranty documentation
CO₂ probe

Use Cases :

Intensive Care Units (ICU)
Emergency Departments
Post-Operative Recovery Rooms
Intra-hospital Transport
Treatment of Respiratory Failure

Key Features :

Comprehensive Ventilation Modes: Supports a wide array of modes including VCV, PCV, SIMV, PSIMV, PSV, PRVC, PSV-NIV, APRV, CPAP, NIV, PS Pro, and Duo-level, catering to diverse patient requirements.
Wide Patient Range: Suitable for infants (from 3 kg), children, and adults, with adjustable parameters for different age groups and sizes.
Precise Tidal Volume and Pressure Control: Delivers tidal volumes from 20 to 2,000 ml and insufflation pressures from 0 to 99 cmH2O.
Adjustable FiO2: FiO2 is adjustable from 21% to 100% with continuous monitoring.
Integrated Capnography: Utilizes mainstream CO2 probe technology for immediate monitoring of CO2 production, pulmonary perfusion, and alveolar ventilation (etCO2, VmCO2, Vmalv, Vdaw, Vdaw/Vt, CO2 slope).
Air Autonomy: Features an integrated turbine for independent air supply, enhancing mobility and simplifying setup.
RSBI (Rapid Shallow Breathing Index): Capability to monitor RSBI for assessment of weaning readiness.
Intelligent Suction: Includes pre-oxygenation and post-oxygenation time settings.
Sigh Functionality: Offers inspiratory plateau, expiratory plateau, and sigh parameters for lung recruitment.
Low Pressure Drop: Minimal pressure drop in inspiratory and expiratory channels for enhanced patient comfort.
HEPA Filter: Equipped with a Monnal Clean’In HEPA filter for air purification.
Dual Power Supply Options: Supports connection to mains power and an external battery pack (sold separately).

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Air Liquide Monnal T75 ICU Ventilator is a state-of-the-art, air-autonomous turbine ventilator designed for the comprehensive treatment of infants (from 3 kg), children, and adults. With over 30 years of expertise in artificial ventilation, the Monnal T75 combines ease of use with advanced capab...
