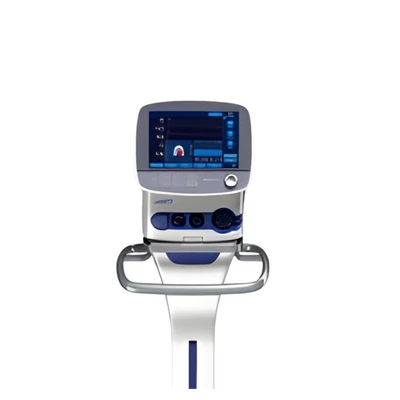

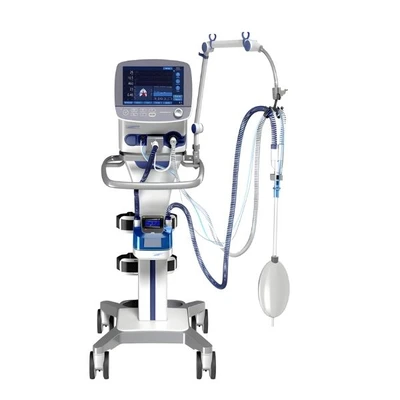

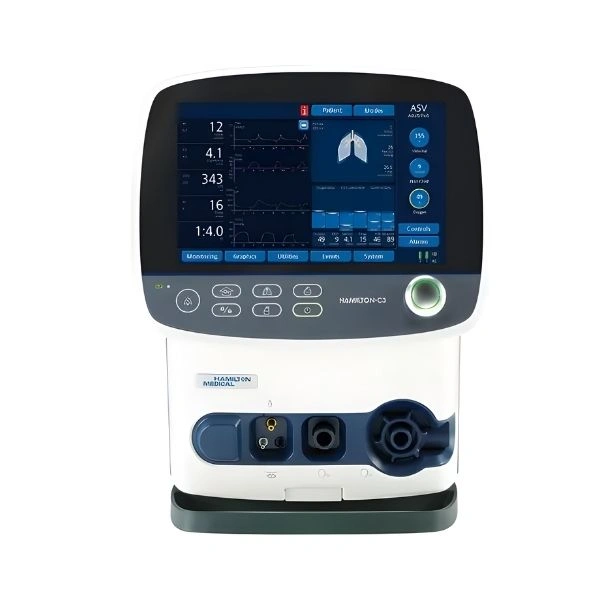

HAMILTON-C3 Mechanical Ventilator

New

Specifications

Patient Groups : Adult/Ped, Neonatal
Dimensions (Ventilation Unit) : 310 x 250 x 460 mm (W x D x H)
Weight (Ventilation Unit) : 9.5 kg (21 lb)
Monitor Size: 12.1 in (307.3 mm) diagonal
Monitor Resolution: 1280 x 800 pixels
Monitor Resolution: 1280 x 800 pixels
Battery Operating Time: ≥ 2.4 h with one battery / ≥ 5 h with two batteries
Hot-swappable Battery: Yes
Air Supply: Integrated turbine, independent of compressed air.
Power Input: 100 to 240 VAC, 50/60 Hz or 12 to 24 VDC
Power Consumption: 50 VA typical, 150 VA maximum
Battery Type: Lithium-ion, 14.4 V DC, 6.8 Ah, 98 Wh
Connectivity: USB, RS-232, Nurse call (optional), CO2 (optional), SpO2 (optional)
Storage Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
Operating Temperature: 10ºC to 40ºC (41ºF to 104ºF)
Humidity (Operating & Storage): 10% to 95%, non-condensing
Altitude: Up to approx. 4,000 m (13,123 ft), 600 to 1,100 hPa
Inspiratory Leakage Tolerance: Up to 85 l/min
Expiratory Leakage Tolerance: Up to 30 l/min
Maximum Inspiratory Flow: 240 l/min (150 l/min with 100% O2)
Loudness: 43 dB in normal operation
O2 Connector: DISS (CGA 1240) or NIST

highlights

High-end, modular mechanical ventilator for adult, pediatric, infant, and neonatal patients.
Features INTELLiVENT-ASV® "Ventilation Autopilot" for advanced ventilation.
Compact design with integrated high-flow turbine, independent of compressed air for maximum mobility.
12.1-inch touchscreen monitor for intuitive operation and comprehensive patient monitoring.
Operates on AC/DC power with battery backup for uninterrupted care.
Up to approximately 5 hours of operating time with two hot-swappable batteries.
Supports a wide range of conventional and advanced ventilation modes.

in the box

Ventilator unit
Power cable
Oxygen hose
Patient breathing circuit with sensors
User manual & service documentation

Use Cases :

Intensive Care Unit (ICU)
Intermediate Care Ward
Emergency Ward
Long Term Acute Care Hospital
Recovery Room
Intra-hospital Transfer of Ventilated Patients

Key Features :

Comprehensive Patient Support: Suitable for Adult, Pediatric, Infant, and Neonatal patients.
INTELLiVENT-ASV®: The "Ventilation Autopilot" for intelligent, adaptive ventilation.
Air Independence: Integrated turbine eliminates the need for compressed air, maximizing mobility.
Intuitive 12.1" Touchscreen: High-resolution display for clear visualization and control.
Extensive Monitoring: Trend data for up to 41 monitoring parameters over various time intervals (1, 6, 12, 24, 72 hours).
AC/DC Power with Battery Backup: Ensures continuous operation and protection against power failure.
Hot-Swappable Batteries: Up to 5 hours of battery operating time with two batteries.
Modular and Compact Design: Facilitates easy transport and setup.
Wide Range of Ventilation Modes: Includes conventional, advanced invasive, and non-invasive modes.
Leak Compensation: Handles significant inspiratory (up to 85 L/min) and expiratory (up to 30 L/min) leaks.
Tool-Free Mounting: Easy attachment and detachment to trolleys, bed mounts, or shelves.
Connectivity: USB, RS-232, and optional Nurse Call.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The HAMILTON-C3 Mechanical Ventilator represents a state-of-the-art, modular solution designed to meet the critical ventilation needs of all patient populations, from neonates to adults. Its advanced "Ventilation Autopilot" powered by INTELLiVENT-ASV® offers intelligent, adaptive support, simplifyin...
