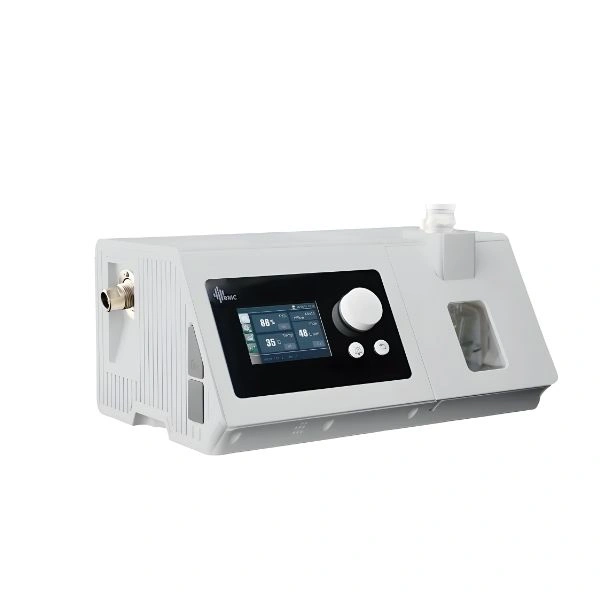

BMC H80-M High Flow Oxygen Therapy Humidifier (HFNC)

New

₹1,49,525₹220,00032% off

Specifications

Therapy Type : High Flow Nasal Cannula (HFNC)
Maximum Flow Rate : Up to 80 L/min (adjustable)
Oxygen Concentration Range (FiO₂) : 21 % – 100 % (monitorable)
Oxygen Control : Manual adjustment (displayed sensor)
Temperature Output : 29 °C – 37 °C (9 steps)
Humidity Compensation : 7-level adjustable ±3
Monitoring Parameters : FiO₂, flow, temperature, respiratory rate, sPEEP
Display : Digital 3.5-inch screen
Modes : HFlow, LFlow, AutoFlow, SmartFlow, Hot standby
Automatic Functions : Filter reminder; water refill hints
Power Requirements : AC 220–240 V, 50/60 Hz
Device Dimensions : ~335 × 227 × 158 mm
Water Capacity : ~235 mL
Protection Class : Class II, Type BF, IP22
Sound Level : < 28 dB at 25 L/min

highlights

Up to 80 L/min high-flow respiratory support
SmartFlow & AutoFlow intelligent adaptive output
Precise humidity & temperature control
Comprehensive real-time clinical monitoring
Supports both adult and pediatric flow modes
Hot standby and maintenance-friendly design

in the box

Main HFNC humidifier unit
Power cord
Heated breathing circuit / tubing
Humidification water chamber
High flow nasal cannula set
Chamber connector and flowmeter/oxygen hose
User manual / guide

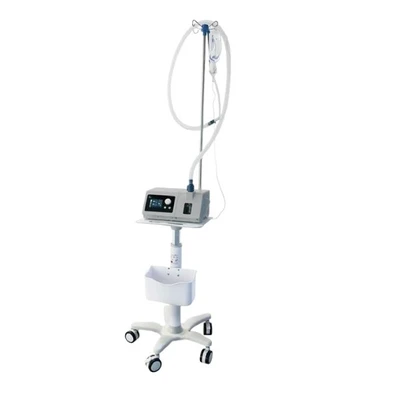

(Optional) trolley stand with basket

Use Cases :

Acute respiratory distress or hypoxemia where heated humidified high-flow support can improve comfort and oxygenation.
Post-operative respiratory care to prevent pulmonary complications following surgery.
Pre- and post-extubation support to aid weaning from mechanical ventilation.
Procedural oxygenation support (e.g., bronchoscopy, sedation) requiring controlled humidified flow.
Long-term care and ward management for patients with chronic respiratory insufficiency needing stable high-flow therapy.

Key Features :

High Flow Delivery: Provides therapeutic gas flows up to 80 L/min for robust respiratory support.
Air-Oxygen Mixing: Delivers mixed air/oxygen with manual or sensor-displayed concentration control (21 %–100 % FiO₂).
AutoFlow & SmartFlow Modes: Automatically adapts output flow based on patient peak expiratory flow and breath cycle for comfort and efficiency.
Temperature & Humidity Control: Heated humidification with up to 9 adjustable temperature levels and 7-level humidity compensation for comfort across environments.
Dual Flow Modes: HFlow for standard high flow and LFlow for low flow (child/pediatric) support.
Comprehensive Monitoring: Displays oxygen concentration (FiO₂), flow, temperature, respiratory rate, and sPEEP in real time.
Hot Standby: Maintains therapy warm and ready without full shutdown, saving oxygen and time.
Maintenance-friendly Design: Disinfection-free mechanism with backflow-prevention valve on the water chamber.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BMC H-80M High Flow Oxygen Therapy Humidifier is an advanced High Flow Nasal Cannula (HFNC) respiratory support device designed to deliver heated, humidified air/oxygen mixtures at high flow rates (up to 80 L/min). It supports patients with spontaneous breathing needs across hospital wards, ICUs...
