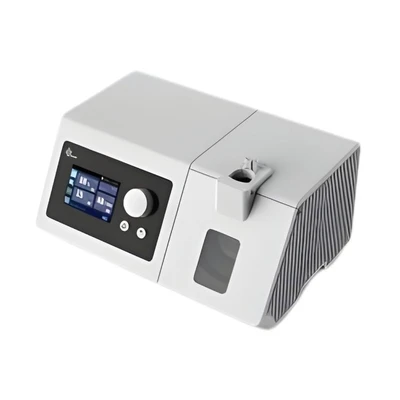

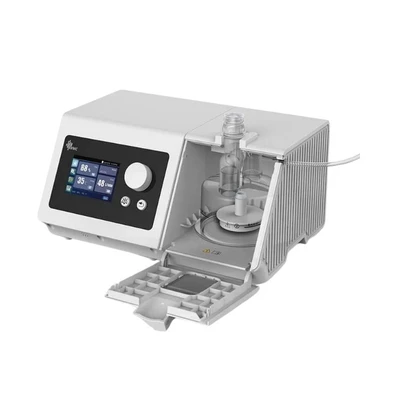

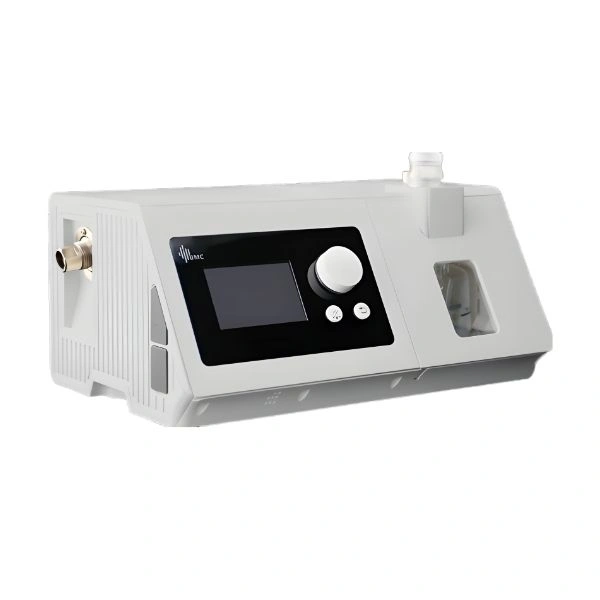

BMC R80-B High Flow Oxygen Therapy Humidifier

New

Specifications

Flow Range : 2 L/min to 80 L/min (adjustable)
Oxygen Concentration Range : 21 %–100 % auto-adjustable, ±1 % accuracy
Temperature Output Range : 29 °C to 37 °C (9-stage)
Humidity Compensation : 7-level adjustable ±3
Modes : HFlow, LFlow, AutoFlow, SmartFlow
Monitoring : Oxygen concentration, flow, temp, resp. rate, sPEEP
Humidification : Heated humidifier with precise temp & humidity control
Device Size : ~335 × 227 × 158 mm (approx.)
Weight : ~4 kg
Water Capacity : ~235 mL
Power Requirements : 220–240 V, 50/60 Hz
Protection Class : Class II, Type BF applied part
Sound Level : <28 dB (at 25 L/min)

highlights

Efficient high-flow delivery up to 80 L/min
Intelligent AutoFlow & SmartFlow adaptive control
Broad oxygen concentration range (21 %–100 %)
Precise temperature and humidity control (9-level, 7-step compensation)
Real-time multi-parameter monitoring
Supports wide clinical application scenarios

in the box

Main High Flow Oxygen Therapy Humidifier unit
Power Cord
Water Chamber / Humidification Bottle
Heated Breathing Circuit / Tubing
High Flow Nasal Cannula (large bore)
User Manual / Quick Start Guide
Filters and Connectors (as applicable)

Use Cases :

Respiratory distress & acute heart failure support by improving oxygenation and reducing respiratory effort.
Post-operative respiratory care to prevent or manage post-operative respiratory failure.
Extubation & pre-intubation support to facilitate smoother transitions in ventilator weaning.
Bronchoscopy or procedural sedation respiratory support to maintain oxygenation during interventions.
Hospital wards and critical care units where spontaneous breathing support with high flow and humidification is needed.

Key Features :

High Flow Delivery: Provides heated, humidified gas up to 80 L/min to match patient inspiratory demand.
AutoFlow & SmartFlow Technology: Automatically adjusts flow based on patient’s breathing and peak expiratory flow; switches flow rates between inhalation and exhalation for comfort and oxygen efficiency.
Wide Oxygen Concentration Control: Adjustable from ~21 % to 100 % with built-in ultrasonic oxygen sensor (no maintenance needed).
Precise Temperature & Humidity: 9-stage humidification (29 °C–37 °C) with 7-level humidity compensation to adapt to environmental conditions.
Dual Flow Modes: HFlow & LFlow to accommodate both adult and pediatric patients.
Real-time Monitoring: Continuous monitoring of oxygen concentration, flow, temperature, respiratory rate, and sPEEP.
Comfort & Clinical Benefits: Improves functional residual capacity (FRC), reduces work of breathing, avoids CO₂ rebreathing, and supports airway hydration and secretion clearance.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BMC R80 B High Flow Oxygen Therapy Humidifier is a high-flow nasal cannula (HFNC) respiratory support device that delivers a precise, heated, and humidified mixture of air and oxygen at adjustable high flow rates. Unlike traditional low-flow oxygen therapy, this system supports spontaneous breat...
