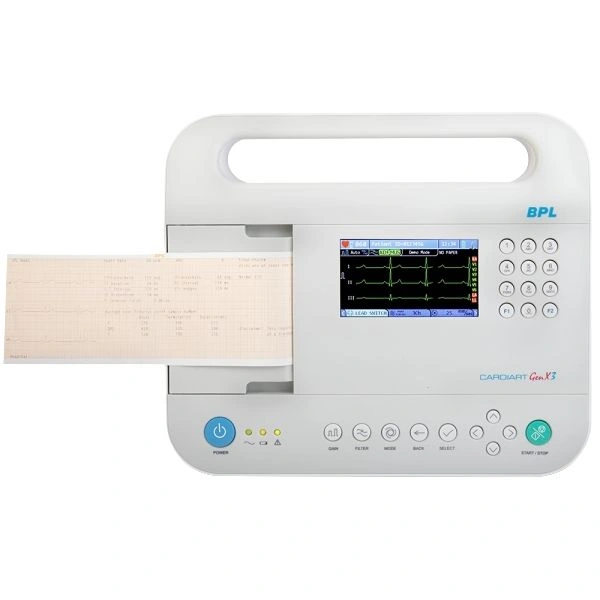

BPL GENX3is 3-Channel ECG Machine without PC Connectivity

New

0.0|0 Ratings

₹50,500₹70,00028% off

Quantity :

Specifications

Product Name : BPL GENX3is 3-Channel ECG Machine
Brand : BPL
Model : Cardiart GENX3is
ECG Channels : 3 Channel
Lead System Standard : 12 Lead / Cabrera
Display : 4.3" Color TFT LCD, 65K Colors
Resolution : 480 × 272 Pixels
ECG Acquisition : 12-bit A/D Converter
Sampling Frequency : 1000 Samples/sec
Frequency Response : 0.05 – 150 Hz
Heart Rate Range : 30 – 240 BPM
Input Impedance : >10 MΩ @ 10 Hz
CMRR : >90 dB @ 50 Hz
Sensitivity : 2.5, 5, 10, 20 mm/mV ±5%
Recording Modes : Auto & Manual
Printer Type : Built-in Thermal Printer
Paper Width : 80 mm Thermal Paper
Paper Speed : 5, 12.5, 25, 50 mm/s
Internal Storage : Up to 250 ECG Records
Connectivity : USB, Optional FTP, HL7 Export
Battery Type : Rechargeable Lithium-ion
Battery Capacity : 11.1V, 3000 mAh
Charging Time : Approx 3.5 Hours
Power Supply : 100–240 VAC, 50/60 Hz
Dimensions : 300 × 260 × 80 mm
Weight : Approx. 2 kg
Filters : Notch Filter, High Pass Filter, Anti-drift Filter
Safety Classification : Class I, Type CF
Interpretation Algorithm : Glasgow ECG Interpretation Algorithm

highlights

Glasgow algorithm provides age-, gender-, and ethnicity-specific interpretation.
Displays real-time 12-lead ECG waveforms on a color screen.
Lightweight design with integrated handle for portability.
Supports digital record management through USB and HL7 export.
Stores up to 250 ECG records internally.
Fast and accurate ECG acquisition with 1000 Hz sampling rate.
Built-in thermal printer for immediate report generation.

in the box

BPL GENX3is ECG Machine
Patient Cable
4 Limb Electrodes
6 Chest Electrodes
Thermal Paper Roll
Cardijelly Bottle
User Manual
Earth Cable
Power Cord
Rechargeable Lithium Battery (pre-installed)
USB Cable (where supplied)
Warranty Card

Use Cases :

Routine ECG examinations in hospitals
Cardiology clinics and diagnostic centers
Emergency and critical care departments
Physician clinics and outpatient departments
Mobile healthcare units
Pre-operative cardiac assessment
Health screening and preventive cardiac checkups

Key Features :

3-channel ECG recording with trace darkness control
4.3-inch 65K Color TFT display
Glasgow ECG Interpretation Algorithm
12-bit A/D converter
1000 samples/sec ECG acquisition rate
Frequency response: 0.05–150 Hz
Full disclosure ECG analysis display
Internal memory for up to 250 ECGs
Rechargeable lithium battery
Built-in thermal printer
USB connectivity for data transfer
Optional FTP and HL7 export support
Real-time ECG transfer to PC via USB (optional)
Alphanumeric keypad with soft silicone keys
One-touch operation with color-coded keys

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The BPL GENX3is is a compact 3-channel resting ECG machine designed for accurate cardiac assessment in hospitals, clinics, diagnostic centers, and mobile healthcare settings. It features the globally recognized Glasgow ECG Interpretation Algorithm, a 4.3-inch color TFT display, built-in thermal prin...
