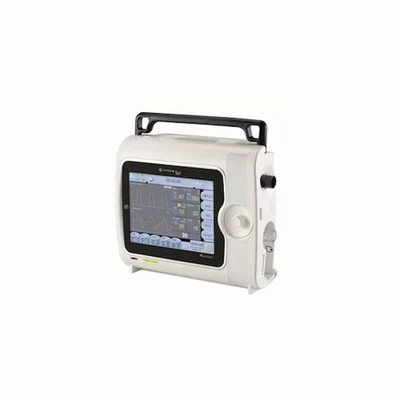

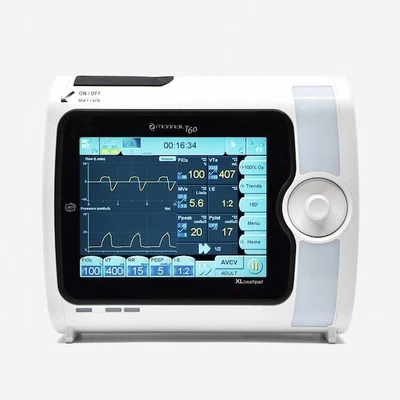

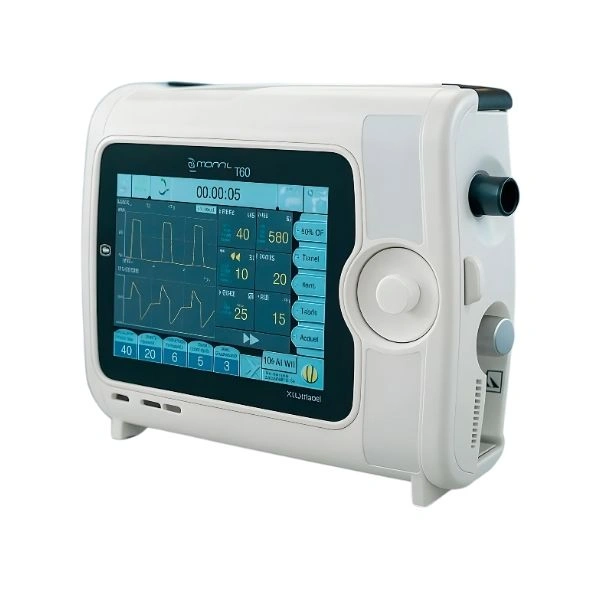

Air Liquide Monnal T60 Emergency Transport Ventilator

New

₹8,05,000₹1,045,40023% off

Specifications

Ventilator Type : Emergency & Transport
Patient Range : Infants (≈3 kg+) / Pediatric / Adult
Tidal Volume : ~50–2000 mL
Respiratory Rate : ~1–60 bpm
FiO₂ Range : ~21–100 %
Peak Flow : Up to ~230 L/min
Modes Supported : VCV, PCV, PSV, SIMV, CPAP, NIV, CPV (optional)
Display : Color touchscreen ~8.4″, 640×480
Weight : ~3.7 kg (≈4 kg with 2 batteries)
Dimensions : ~29 × 25 × 11 cm
Battery Life : ~5 h (interchangeable)
Noise Level : ~48 dB(A) at 1 m
Transport Standards : EN 13718, RTCA DO-160F 20G

highlights

✅ Broad patient support: From infants to adults with adjustable ventilation parameters.
✅ Robust transport design: Certified for air and ground transport with automatic atmospheric pressure compensation.
✅ Advanced ventilation modes: Includes support for NIV, CPAP, SIMV, APRV (in advanced configurations), and CPV where available.
✅ Continuous power flexibility: AC and DC operation with hot-swappable batteries.
✅ Comprehensive alarm and monitoring systems for safety and patient tracking.

in the box

Monnal T60 emergency and transport ventilator unit
Internal + removable battery packs
AC power cable & charger/docking station
Oxygen supply hose/connectors
Patient breathing circuit & filters
Carrying case / transport bag
User manual & quick start guide

Use Cases :

Emergency response and transport: Land ambulances, air ambulances, helicopters, aircraft.
Intra- and inter-hospital patient transfers (e.g., trauma, ICU, recovery).
Critical care support: Patients with acute respiratory distress in emergency departments and intensive care units.
Mobile intensive care units (MICU).
Anesthesia and respiratory therapy contexts.

Key Features :

Supports multiple ventilation modes: Volume-controlled (VCV), pressure-controlled (PCV), spontaneous, SIMV, PSV, CPAP, NIV and advanced options (e.g., APRV/CPV depending on configuration).
Automatic emergency start: Quick setup with preset parameters based on patient weight (Ideal Body Weight, IBW) for rapid emergency ventilation.
Wide tidal volume range: Approximately 50–2000 mL to treat a broad patient spectrum.
High peak flow: Up to ~230 L/min for effective non-invasive support.
Lightweight and compact: Approx. 3.7 kg (≈4 kg with batteries).
Battery autonomy: Internal battery offers ~5 hours of operation; hot-swappable for uninterrupted use.
Certified for air transport: Meets EN 13718 & RTCA DO-160F 20G resistance standards for airborne use.
Certified for air transport: Meets EN 13718 & RTCA DO-160F 20G resistance standards for airborne use.
Large color touchscreen (≈8.4″, 640×480): Readable display with adjustable brightness for daylight/night operations.
Intuitive navigation: Single-page display layout simplifies parameter adjustments.
Visible alarms: Bright visual and audible alarms improve safety awareness.

Warranty

No Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Air Liquide Monnal T60 Emergency and Transport Ventilator is a portable, turbine-driven ventilator engineered for mobile intensive care and emergency transport settings. It provides invasive and non-invasive respiratory support for patients ranging from infants (typically ≥3 kg) to adults, adapt...
