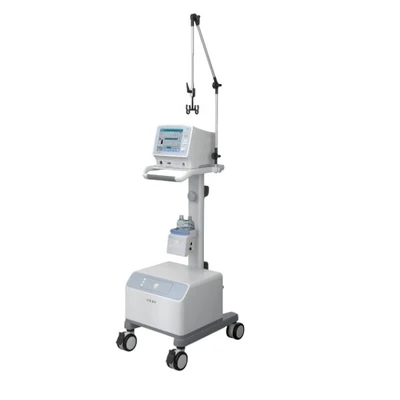

Comen NV8 Top Neonatal Touch Screen Non Invasive Ventilator

New

Specifications

Product Name : Comen NV8 Neonatal Ventilator
Brand : Comen
Ventilation Type : Non-invasive neonatal ventilator
Ventilation Modes : NCPAP, NIPPV, SNIPPV, HFNC (High-Flow Nasal Cannula)
Control System : iFlow Intelligent Closed-Loop Control with leakage compensation
Display : 8″ TFT color touchscreen (800 × 600)
Battery Backup : Built-in lithium-ion (~240 min / ~4 hrs)
Oxygen Concentration : (FiO₂) 21 % – 100 % (±3 %)
Pressure Range : Airway pressure approx. 1–13 cmH₂O; Inspiratory up to ~20 cmH₂O
Flow Rate : ~0.5–20 L/min
Respiratory Rate Range : ~1–120 breaths/min (with backup)
Inspiratory Time : Adjustable up to 15 seconds
Dimensions (Approx) : 1300 × 440 × 520 mm
Weight : ~26 kg (without compressor)
Power Supply : AC 100-240 V / DC 12-24 V (optional)
Alarms & Safety : Visual/audible alarms, apnea detection, leakage compensation

highlights

Advanced non-invasive ventilation suite with synchronized modes that improve comfort and reduce work of breathing.
Intelligent pressure control with automatic leakage compensation and apnea detection.
User-friendly touchscreen for easy adjustment and monitoring.
Mobile and transport-ready with battery backup and trolley compatibility.
Accurate oxygen delivery and integrated humidification support for improved patient comfort.

in the box

Comen NV8 Neonatal Ventilator Unit with Touch Screen
Humidifier (compatible or included)
Disposable Circuit with Neonatal Mask
Ventilator Stand / Trolley
Power Cable & Connectors
Circuit Arm / Support Accessories

Use Cases :

Neonatal Intensive Care Units (NICUs) for infants with respiratory distress or underdeveloped lungs.
Respiratory support for preterm and low birth-weight babies to enhance oxygenation and avoid intubation.
Weaning off ventilators by providing non-invasive ventilation modes.
High-flow oxygen therapy using HFNC when needed.
Intra-hospital transport when continuous respiratory support is necessary.

Key Features :

Multiple Ventilation Modes: Supports NCPAP (continuous positive airway pressure), NIPPV, SNIPPV (synchronized nasal intermittent positive pressure ventilation), and HFNC (high-flow nasal cannula) for comprehensive non-invasive respiratory care.
iFlow Intelligent Closed-Loop Control: Automatically adjusts fresh gas flow and pressure with leakage compensation for stable and precise ventilation.
Advanced Apnea Management: Features an apnea wake-up function that triggers inspiratory support if spontaneous breathing pauses, reducing apnea risk.

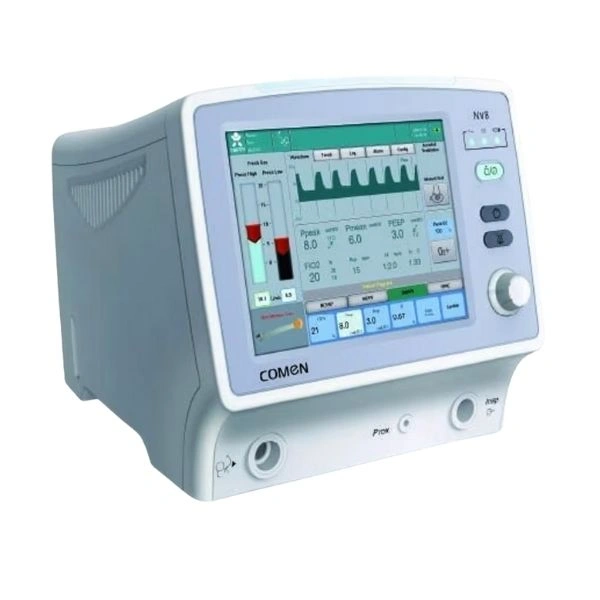

8″ Touch Screen Display: Intuitive TFT color touchscreen with real-time waveforms and monitoring for easy clinical use.
Internal Battery Backup: Built-in lithium-ion battery provides up to ~4 hours (240 min) of operation during power interruptions or for intra-hospital transport.
Built-In Air-Oxygen Blender: Allows accurate mixing of air and oxygen with adjustable FiO₂ (typically 21 %–100 %).
Humidifier Compatible: Includes or supports an integrated humidifier (often Fisher & Paykel) for delivery of warm, conditioned inspiratory gas.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Comen NV8 Neonatal Ventilator is a non-invasive respiratory support device designed specifically for newborns and premature infants. It provides professional, diversified nasal ventilation with multiple advanced modes — including NCPAP, NIPPV, SNIPPV, and HFNC — to support spontaneous breathing ...
