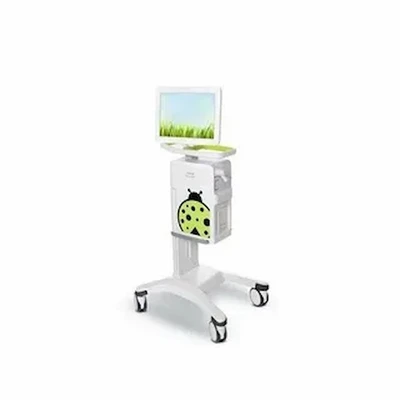

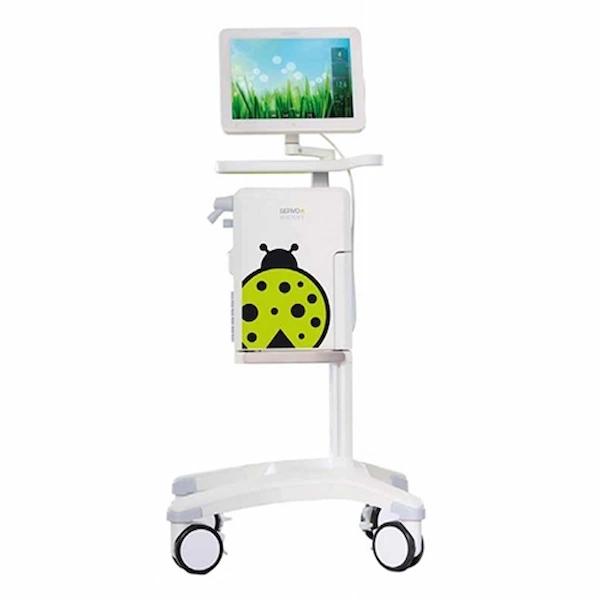

Maquet Servo-n Neonatal Ventilator

New

Specifications

Brand / Model : Maquet Servo-N Ventilator
Patient Groups : Neonatal, Pediatric
Tidal Volume Range : Neonatal: 2–50 mL; Pediatric: 10–350 mL
Respiratory Rate : 4–150 breaths/min
Ventilation Modes : Invasive & Non-invasive, PRVC, Automode, NAVA/NIV NAVA, Nasal CPAP, High Flow, HFOV Getinge
Monitoring : Edi diaphragmatic monitoring, Servo Compass®, EtCO₂
Display : Large TFT-LCD touchscreen interface
Battery Backup : Optional battery support available
Dimensions (Base) : Approx. 368×205×826 mm (HxW×D) without cart
Weight (Base) : ~23 kg without cart; ~35 kg with mobile cart
Operating Environment : Typically clinical facility setup required

highlights

Tailored to Fragile Patients: Designed to provide exceptional precision and adaptability for neonatal respiratory needs.
Smart Synchrony with NAVA: Unique neurally adjusted assist responds to the infant’s own neural respiratory signals.
Integrated Advanced Therapies: HFOV, Heliox support, and comprehensive monitoring reduce the need for additional standalone systems.
Workflow Enhancements: On-screen help, data trends, and interoperability with data systems support clinical efficiency.

in the box

Servo-N Ventilator Main Unit
Ventilation Circuit Accessories (tubing, connectors)
Interface Accessories (cables, sensors)
User Manuals and Quick Start Guides
Service & Warranty Documentation

Use Cases :

Neonatal Intensive Care Units (NICU): Primary ventilatory support for premature and critically ill newborns with delicate respiratory physiology.
Pediatric Intensive Care: Extended support for larger infants and pediatric patients (up to pediatric weight range).
Weaning & Transitional Support: Gentle progression from full support to assisted and spontaneous breathing using NAVA and NIV-NAVA modes.
High-Risk Respiratory Events: Use of HFOV rescue mode during episodes of severe lung dysfunction.
Complex Respiratory Therapies: Combined use with Heliox therapy and aerosolized medications for obstructive airway diseases.

Key Features :

Comprehensive Ventilation Modes: Supports a range of invasive and non-invasive modes including Pressure Regulated Volume Control (PRVC), Automode, Nasal CPAP, High Flow therapy, and Neurally Adjusted Ventilatory Assist (NAVA / NIV NAVA) which adapts support to the infant’s own breathing efforts.
Edi Monitoring & Synchrony: Monitors the electrical activity of the diaphragm (Edi) to enhance patient-ventilator synchrony, reduce work of breathing, and support individualized ventilation strategies.
High Frequency Oscillatory Ventilation (HFOV): Built-in rescue mode suitable for severe respiratory distress when conventional ventilation isn’t sufficient.
Heliox & Nebulization Support: Capable of safely delivering Heliox therapy (helium–oxygen mix) and integrated nebulization to improve drug deposition and reduce airway resistance.
Advanced Monitoring Tools: Includes Servo Compass®, trend logs, EtCO₂ monitoring, and contextual on-screen help for streamlined clinical decisions.
Leakage Compensation: Precisely adjusts for variable leaks in both invasive and non-invasive ventilation, crucial for neonatal circuits.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Maquet Servo-N Neonatal Ventilator is a high-performance, clinical-grade ventilator specifically engineered for neonatal and pediatric respiratory support. It combines advanced ventilation technology with precise controls to deliver tailored support for the most vulnerable patients — from premat...
