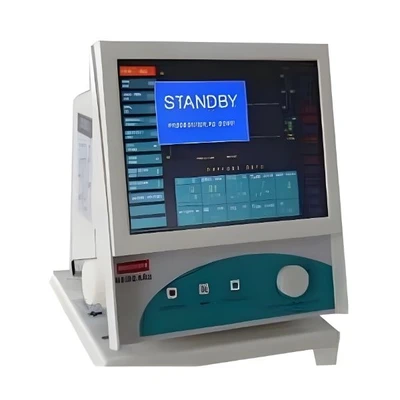

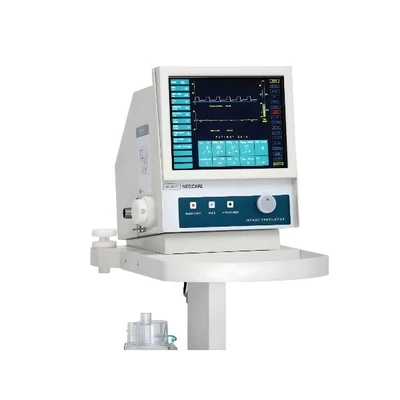

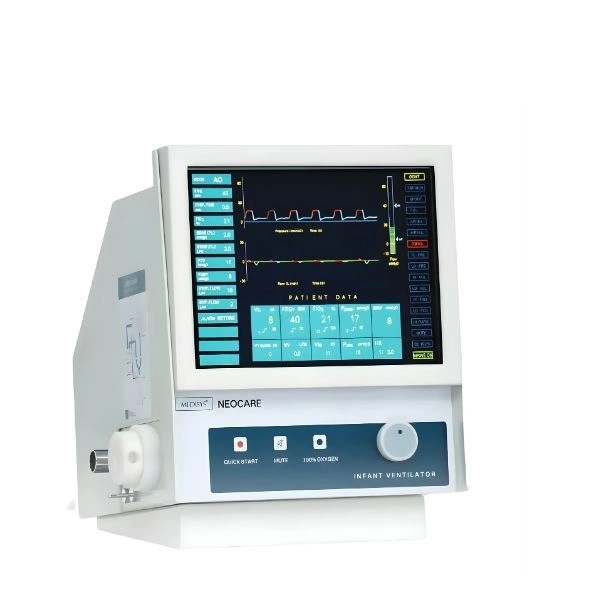

Medisys Neocare Neonatal Ventilator

New

Specifications

Product Name : Medisys Neocare Neonatal Ventilator
Patient Category : Neonatal, Infant, Pediatric
Ventilation Modes : AC, SIMV/IMV, Spontaneous, CPAP with backup
Flow Range : 2 – 25 L/min
Tidal Volume : 6 – 300 mL
Inspiratory Time : 0.2 – 3.0 seconds
I:E Ratio : 1:1 to 1:10 (AC), 1:1 to 1:60 (SIMV), Inverse up to 4:1
Respiratory Rate : 1 – 150 breaths/min
Triggering Flow : (1–10 L/min) & Pressure (0.5–8 cmH₂O)
Expiratory Pressure (PEEP) : 0 – 20 cmH₂O
Inspiratory Pressure Limit : 5 – 50 cmH₂O
Safety Pressure Relief : 15 – 50 cmH₂O
Display : 12.1″ Graphical LCD
Alarms : High/Low Pressure, Gas Failure, Apnea, Electrical Failure
Power Supply : 220–240 V AC, 50 Hz
Battery Backup : ~3 hours
Dimensions (Ventilator Module) : 28×32×32 cm
Weight : ~8.2 kg

highlights

Designed with neonatal physiology in mind, offering gentle, lung-protective ventilation to minimize injury.
Advanced triggering and monitoring enhance patient-ventilator synchrony and clinical oversight.
Large graphical display simplifies parameter visualization and trend tracking.
Robust alarm suite and sensor calibration increase reliability in busy NICU environments.

in the box

Main ventilator unit (Medisys Neocare)
Breathing circuit and proximal flow sensor
Heated humidifier and oxygen sensor
Mobile stand (optional depending on configuration)
User manual and documentation

Use Cases :

Neonatal Intensive Care Units (NICUs) supporting preterm and critically ill infants requiring mechanical ventilation.
Special Newborn Care Units (SNCUs) for continuous respiratory support in newborns with immature lungs.
Pediatric wards where similar ventilatory needs extend beyond neonates.
Transport support (when battery or power continuity is maintained) during intra-hospital movements.
Training & teaching hospitals for demonstration and hands-on ventilation practice.

Key Features :

Multiple Ventilation Modes: Includes AC (Assist/Control), SIMV/IMV, Spontaneous, and CPAP with backup for flexible respiratory support.
Pressure & Volume Limiting: Dual limiting mechanisms reduce the risk of injury to delicate neonatal lungs.
Apnea Backup Ventilation: Automatically initiates support if spontaneous breathing pauses.
Servo-Controlled Oxygen Blender: Provides precise FiO₂ delivery from 21 % to 100 % with emergency override for 100 % oxygen.
Dual Triggering: Combines flow and pressure triggering for responsive breath initiation.
Comprehensive Monitoring: Displays real-time parameters such as expired tidal volume, minute volume, FiO₂, PIP, MAP, and I:E on a large 12.1″ LCD.
Safety and Alarms: Alerts for high/low pressures, volume, FiO₂, apnea, gas supply loss, and power failure; includes alarm history logging.
Automatic Sensor Calibration: Maintains accuracy in oxygen sensing over time.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Medisys Neocare Neonatal Ventilator is a microprocessor-based respiratory support device engineered primarily for neonates, infants, and pediatric patients. It uses pneumatically assisted continuous flow with time-cycled ventilation and incorporates safety features to minimize the risk of barotr...
