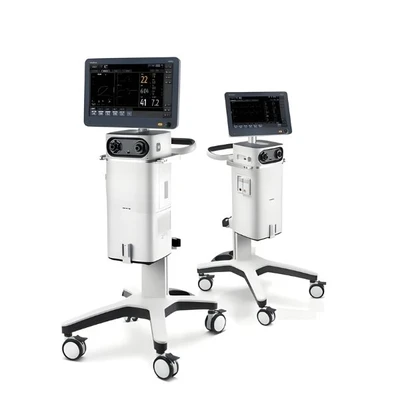

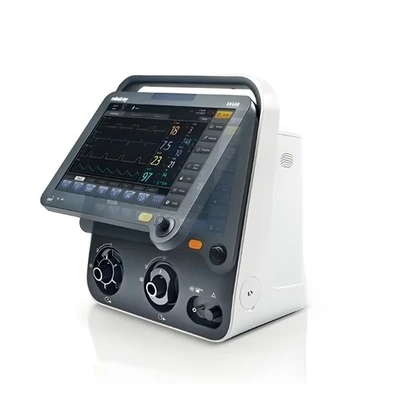

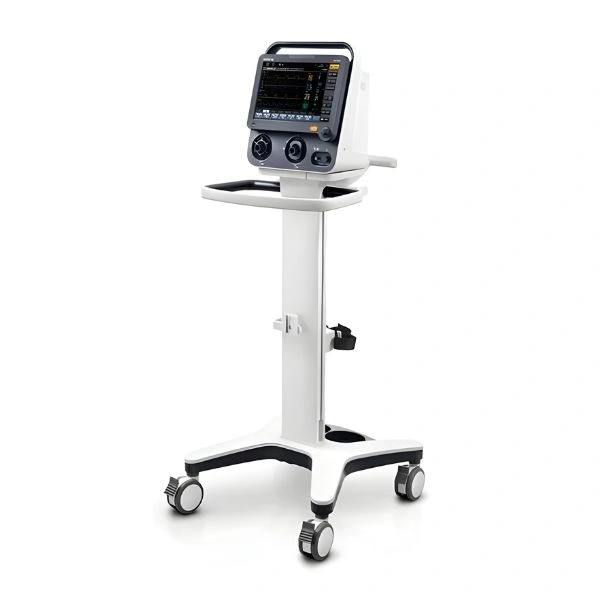

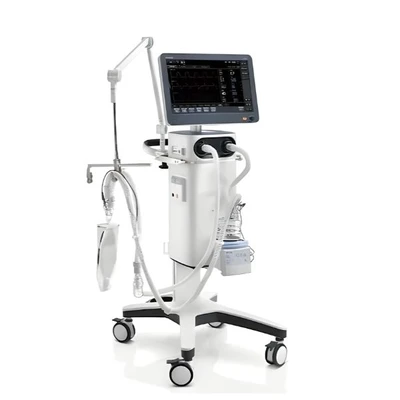

Mindray SV300 ICU Ventilator

New

Specifications

Patient Types : Adult, Pediatric (≥ ~3 kg)
Ventilation Modes : V-A/C, P-A/C, V-SIMV, P-SIMV, PSV, CPAP, Duolevel, APRV, PRVC, Apnea Back-up
Respiratory Rate : ~1–100 rpm (approx.)
Tidal Volume Range : Pediatric ~20–300 mL; Adult ~100–2000 mL
Peak Airway Pressure : ~5–80 cm H₂O
Display : 12.1″ color TFT touchscreen (1280×800)
Weight : ~10 kg (excluding trolley)
Battery Life : ~2–6 hours (internal/optional second battery)
Gas Supply Pressure : ~280–600 kPa (O₂)
Connectivity : RS232, VGA, USB, Ethernet, Nurse Call

highlights

✔️ Turbine-based independence — runs without central air/gas supply.
✔️ Comprehensive ventilation suite for invasive, non-invasive, and high-flow therapy.
✔️ Large adjustable touchscreen enhances usability in critical care.
✔️ Integrated SpO₂ and CO₂ monitoring facilitates real-time respiratory assessment.
✔️ Robust connectivity for data export and hospital system integration.
✔️ Portable & lightweight, supporting intra-hospital mobility.

in the box

Mindray SV300 ventilator unit
AC power cable
Internal battery
Oxygen supply hose / connectors
Breathing circuit and sensors (flow sensor, inspiratory/expiratory modules)
User manual / documentation
Quick start guide

Use Cases :

Intensive Care Unit (ICU)
Intermediate Care
First Aid
Post-Operative Care
Pneumology Therapy
Intra-hospital Transport
NIV and O2 Therapy

Key Features :

Extensive ventilation modes for adult and pediatric patients
High-performance turbine for gas independence
Invasive and Non-Invasive Ventilation (NIV) support
Integrated SpO2 monitoring
Mainstream and Side stream CO2 measurement
ATRC (Adaptive Tube Resistance Compensation)
Weaning indicators (P0.1, NIF, RSBI)
Volumetric CO2 measurement (Airway dead space, CO elimination)
O2 Therapy with adjustable flow
IntelliCycle for improved breath synchrony
Exceptional leak compensation capability
Quiet turbine operation
Detachable, tool-free, autoclave-sterilizable valve system
Intuitive user interface
Up to 6 hours of internal battery support (with optional second battery)
HEPA filters for inspiratory gas
Water-resistant inspiratory/expiratory flow sensors
Compact and lightweight design (9.8kg)

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Mindray SV300 Ventilator is a advanced ICU-grade ventilator that combines high-performance turbine technology with extensive ventilation modes and modern monitoring tools. It is engineered to support invasive, non-invasive, and high-flow oxygen therapies for pediatric and adult patients (includi...
