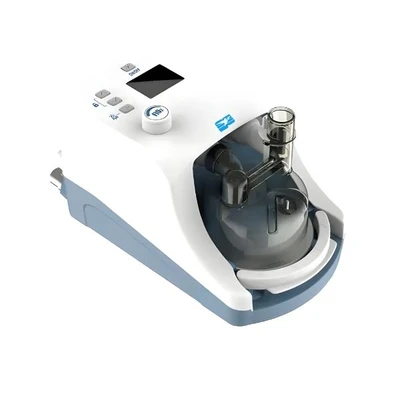

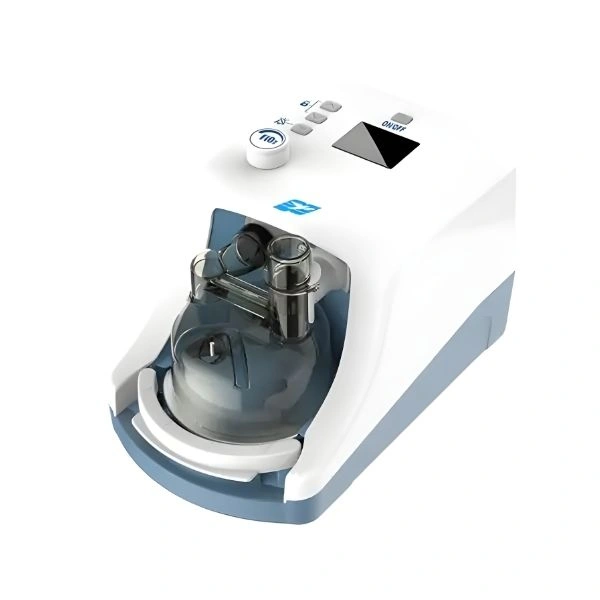

Pigeon PN-2000HF80 High Flow Nasal Cannula (HFNC)

New

Specifications

Therapy Type : High Flow Nasal Cannula (HFNC) Oxygen Therapy
Flow Adjustment Range : ~2 L/min – 80 L/min ±8 %
Oxygen Concentration (FiO₂) : ~21 % – 100 %, ±5 % (±3 % FS)
Output Gas Temperature : ~31 °C – 37 °C ±2 °C (3 levels)
Heating Plate Auto Cut-off : ~115 °C ±5 °C
Humidification Chamber : Auto-feed, variable ≤280 mL
Audible Alarm Level : ≥ 55 dB (A)
Power Supply : AC 90 V – 260 V, 47 Hz – 63 Hz
Power Consumption : ~150 W ±15 %
Preheating Time : ≤ 30 min (to 31 °C in ≤ 10 min)
Working Environment : ~18 °C – 26 °C, ≤ 80 % RH

highlights

Adjustable flow rate up to 80 L/min
Full range FiO₂ adjustment (21 %–100 %)
Integrated real-time monitoring with digital display
Heated humidification to protect airway mucosa
High-density filtration to reduce infection risk
Safety alarms and easy cleaning design

in the box

Main PN-2000HF80 HFNC unit (heater-humidifier system)
Heated breathing circuit / tubing
Set of high-flow nasal cannula/prongs
Oxygen inlet connector / adapters
Power cable
User manual and guide

Use Cases :

Hypoxemic respiratory failure in spontaneously breathing patients.
High-flow oxygen therapy to improve ventilation and oxygenation.
Reduction of dead space and enhancement of CO₂ elimination.
Step-down units, respiratory wards, and ICU care as supportive oxygen therapy.
Post-operative respiratory support and other conditions where non-invasive oxygen delivery improves patient comfort.

Key Features :

Wide Flow Range: Adjustable gas flow up to ~80 L/min for effective respiratory support.
Full FiO₂ Adjustment: Oxygen concentration adjustable across ~21 %–100 % with built-in monitoring (no external sensor needed).
Heated & Humidified Output: Maintains gas temperature between ~31 °C and 37 °C to improve mucosal comfort and prevent airway drying.
Integrated Digital Display: Simultaneous real-time display of flow, temperature, oxygen concentration, and operational status.
High-Density Filtration: Filter cotton reduces risk of contamination and cross-infection.
Safety Alarms: Audible alarms for system status to alert caregivers.
Easy Cleaning: Designed for surface disinfection with simple cloth and mild disinfectant.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Pigeon PN-2000HF80 High Flow Nasal Cannula (HFNC) is a medical-grade high-flow oxygen therapy system designed to deliver heated, humidified air/oxygen mixtures at high flow rates to patients with spontaneous breathing and hypoxemia. The device generates continuous positive pressure while conditi...
