Shipping time and rates
Shipping about 5-7 days

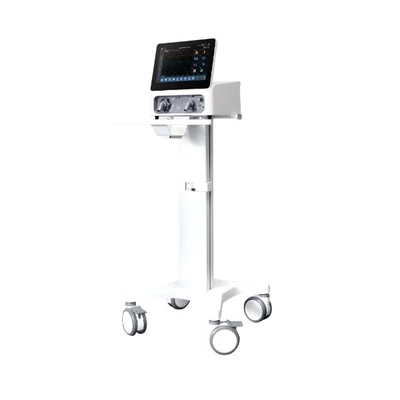

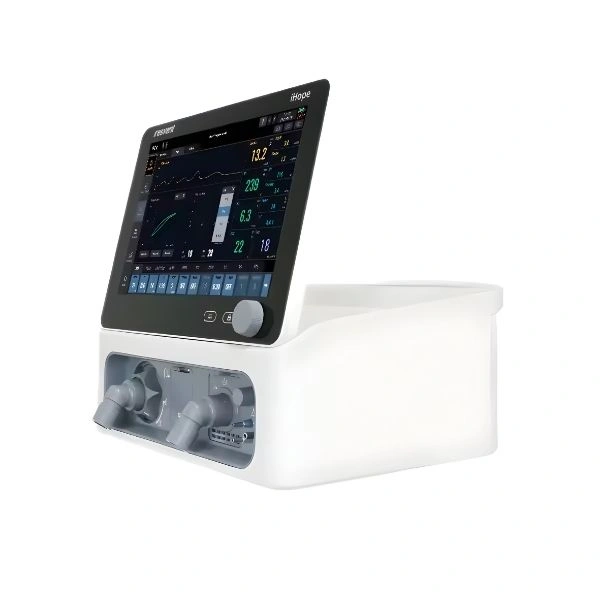

Resvent RV-200 Neonatal Universal Ventilator
New4.3|50 Ratings
₹8,00,000₹950,00016% off
Quantity :
1
Specifications
- Product Name : Resvent RV 200 Neonatal Universal Ventilator
- Brand : Resvent Medical
- Ventilation Type : Invasive & Non-Invasive
- Supported Patients : Neonatal, Pediatric, Adult
- Ventilation Modes : VCV, PCV, VSIMV, PSIMV, CPAP/PSV, PRVC, BPAP, APRV, Apnea Ventilation
- Display : 12.1″ Color TFT Touchscreen, 1280×800 px
- Tidal Volume Range : Neonate: 2–300 mL; Pediatric: 20–300 mL; Adult: 100–2000 mL
- Respiratory Rate : Neonate: 1–150 bpm; Pediatric/Adult: 1–80 bpm
- FiO₂ Range : 21 % – 100 % (1 % steps)
- I:E Ratio : 4:1 – 1:10 (0.5 increments)
- Battery Backup : 2-3 hrs (single battery)
- Dimensions : 336×330×345 mm (unit)
- Weight : ~9.5 kg (unit); ~31 kg (with trolley)
- Power Supply : 100–240 V AC, 50/60 Hz
- Alarms & Safety : Multi-parameter alarms, apnea backup, pressure limits
highlights
- All-in-One Ventilation: Supports invasive and non-invasive therapies across patient ages.
- Advanced Mode Suite: Facilitates lung protection and weaning strategies with APRV, PRVC, and CPAP among others.
- Independent Operation: Turbine drive and battery backup enable use outside fixed ICU settings.
- User-Friendly Interface: Large touchscreen with intuitive controls and trend display for up to 72 hours of data.
in the box
- Resvent RV 200 Ventilator Unit
- Internal Lithium-Ion Battery (Pre-installed)
- AC Power Adapter & Charging Cable – 1 Set
- DC Power Cable – 1
- Patient Circuit Tubing Sets (Adult, Pediatric, Neonatal)
- Oxygen & Air Supply Tubes – 1 Set
- Filters (HEPA / Bacterial-Viral) – 1 Set
- User Manual & Quick Reference Guide – 1 Set
- Optional Accessories: Humidifier, Transport Bag, Trolley Mount
Use Cases :
- Neonatal Intensive Care Units (NICU) supporting respiratory failure and lung immaturity.
- Pediatric and Adult ICUs requiring advanced ventilation strategies.
- Emergency & Trauma Units with rapid respiratory intervention needs.
- Operating Theatres for peri-operative ventilatory support.
- Intra-Hospital Transport where pipeline gases may not be available.
Key Features :
- Universal Ventilation Support: Suitable for neonatal, pediatric, and adult patients in both invasive and non-invasive modes.
- Advanced Ventilation Modes: Includes VCV, PCV, SIMV, CPAP/PSV, PRVC, BPAP, APRV and specialized apnea ventilation strategies.
- Turbine-Driven System: Independent of hospital pipeline air, enabling use in transport and locations without central air.
- 12.1″ Touchscreen Display: High-resolution active matrix TFT touchscreen with intuitive UI and adjustable brightness.
- Comprehensive Monitoring: Real-time waveforms, loops, and integrated lung mechanics tools.
- Battery Backup: Built-in lithium-ion battery allowing up to 2-3 hours of operation during power interruptions or transport.
- Portable & Versatile: Compact design (~9.5 kg) and optional trolley (~31 kg) for mobility.
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Resvent RV 200 is a universal turbine-driven ventilator that provides both invasive and non-invasive ventilation across all age groups — including neonatal patients. It is engineered for use in critical care environments such as NICUs, pediatric and adult ICUs, emergency and transport settings. ...
