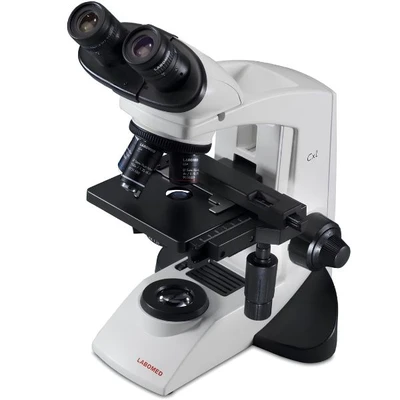

Labomed CxL Cordless Binocular Microscope

Name: Labomed CxL Cordless Binocular Microscope
Brand: Labomed
SKU: 91b4643d-f92a-479f-a814-f93245ec22d9
Price: 32500 INR
Availability: InStock

New

0.0|0 Ratings

₹32,500₹45,00028% off

Quantity :

Specifications

Model : Labomed CxL
Microscope Type : Upright Biological Microscope
Configuration : Binocular
Viewing Head : 45° inclined binocular head
Head Rotation : 360° captive rotation
Interpupillary Distance : 54–74 mm
Eyepieces : Widefield 10×/18 mm, focusable
Eyepiece Features : Foldable eye guard, lockable, antifungal coating
Optical System : LP series DIN Semi-Plan Achromatic
Objectives : 4×, 10×, 40× spring-loaded, 100× spring-loaded oil*
Nosepiece : Quadruple nosepiece turret, ball-bearing type
Nosepiece Grip : Rubber grip
Stage Type : Rectangular mechanical stage
Stage Size : 135 × 124 mm
X/Y Travel : 76 × 50 mm
Specimen Holder : Single specimen holder
Condenser : Sub-stage Abbe condenser
Condenser NA : 1.25
Condenser Lens : Aspheric lens
Diaphragm : Iris diaphragm
Filter : Snap-in blue filter
Focusing : Coaxial coarse & fine focusing
Focusing Mechanism : Ball-drive system
Stage Drive : Brass rack-and-pinion
Fine Focus Movement : 0.3 mm/rotation
Illumination : LED or 6 V/20 W halogen configuration
LED Life : Up to 100,000 hours according to official Labomed page
Illumination Control : Variable intensity
Battery : Rechargeable Li-ion battery for cordless operation
Power Input : 100–240 V AC
Frequency : 50/60 Hz
Voltage Stabilizer : Built-in
Stand : Single-mold aluminum die-cast
Stand Features : Ergonomic handrests
Optional Accessories : Phase, polarizing and dark-field kits; auxiliary objectives/eyepieces; digital cameras/adapters; cord hanger kit; soft carrying case

highlights

Cordless Microscope: Built-in rechargeable battery enables operation without being continuously connected to an electrical outlet.
Comfortable Binocular Viewing: 45° inclined head with 360° rotation and adjustable interpupillary distance.
Quality Optics: LP series DIN semi-plan achromatic objectives provide clear images with good color and contrast.
Long-Life LED: Rechargeable LED illumination provides cool, comfortable lighting and very long service life.
Durable Construction: Aluminum die-cast stand with ergonomic handrests provides stability.
Smooth Focusing: Coaxial coarse and fine focusing with ball-drive mechanism.
Mechanical Stage: 135 × 124 mm stage with 76 × 50 mm X/Y travel.
Laboratory Friendly: Antifungal optical treatment helps maintain performance in demanding environments.
Flexible Power: Universal 100–240 V AC input plus rechargeable cordless operation.

in the box

1 × CxL Binocular Microscope
Power Cable – 6 ft
Cargille Immersion Oil — applicable with 100× configurations
Nylon Dust Cover
Cleaning Cloth
Styrofoam Protective Casing

Use Cases :

Educational institutions
High-school and college biology laboratories
University teaching laboratories
General biological microscopy
Basic laboratory examination
Agriculture and biological studies
Classroom practical demonstrations
Laboratories where cordless/portable operation is beneficial

Key Features :

Cordless operation using a built-in rechargeable lithium-ion battery.
Rechargeable LED illumination with variable intensity control.
LED illumination provides cool, daylight-white light and long operating life.
45° inclined binocular viewing head for comfortable observation.
360° captive rotation of the viewing head.
Interpupillary distance adjustable from 54–74 mm.
LP series DIN semi-plan achromatic objectives.
Antifungal treatment on optical components.
Quadruple nosepiece turret with ball-bearing mechanism and rubber grip.
Rectangular mechanical stage with low-position drive controls.
Coaxial coarse and fine focusing system.
Brass rack-and-pinion stage drive.
Abbe condenser NA 1.25 with aspheric lens.
Iris diaphragm with snap-in blue filter.
Durable single-mold aluminum die-cast stand with ergonomic handrests.
Universal 100–240 V AC, 50/60 Hz power input with built-in voltage stabilizer.
Lead-free optics and paints for an eco-friendly design.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Labomed CxL Cordless Binocular Microscope is an upright biological microscope designed for classroom, educational, and laboratory environments. It combines a durable aluminum die-cast stand, semi-plan achromatic optics, ergonomic controls, and rechargeable LED illumination. The binocular viewing...
