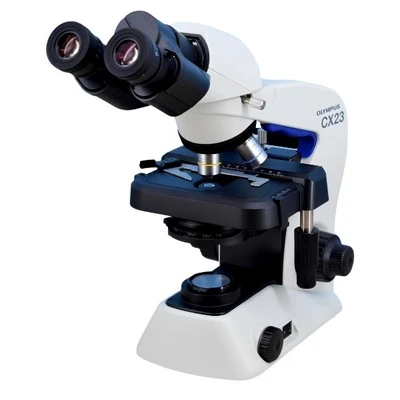

Olympus CX23 Binocular Microscope

Shipping time and rates

Shipping about 5-7 days
7-day replacement
Manufacturer warranty
Fast shipping
100% authentic

Olympus CX23 Binocular Microscope

New
0.0
₹1,43,500₹200,00028% off

Quantity :

1

Specifications

  • Microscope Type : Upright Biological Microscope
  • Observation Method : Brightfield, Darkfield
  • Observation Head : Binocular
  • Optical System : FN20
  • Tube Inclination : 30°
  • Interpupillary Distance : 48–75 mm
  • Illumination : Transmitted LED
  • LED Life : Approx. 20,000 hours
  • Focusing Mechanism : Stage focusing
  • Focus Stroke : 15 mm
  • Focus Features : Coarse adjustment limit stopper; coarse adjustment tension adjustment
  • Nosepiece : Manual, 4-position
  • Stage : Mechanical stage with right-hand control
  • Stage Travel – X : 76 mm
  • Stage Travel – Y : 30 mm
  • Condenser : Abbe condenser
  • Condenser NA : 1.25
  • Condenser Working Range : 4×–100×
  • Field Diaphragm : Available; CX23-FS option
  • Dimensions (W × D × H) : 198 × 398 × 386 mm
  • Weight : Approx. 5.9 kg
  • Objective Type : Plan Achromat
  • Typical Objectives : 4×, 10×, 40×; 100× oil available depending on configuration
  • 100× Oil Objective : Optional, depending on configuration
  • Typical Total Magnification : 40×–1000× with 10× eyepieces
  • Power AC : 100–240 V, 50/60 Hz, configuration dependent

highlights

  • Easy to Carry
  • Excellent Optical Performance
  • Long-Life LED Illumination
  • Comfortable Observation
  • Student-Friendly Operation
  • Köhler Illumination Training

in the box

  • Olympus CX23 binocular microscope
  • Binocular observation tube
  • Eyepieces
  • Revolving nosepiece
  • Microscope objectives
  • Mechanical stage
  • Abbe condenser
  • Integrated LED illumination system
  • Power supply/power cord
  • Microscope accessories supplied according to the ordered configuration

Use Cases :

  • Biology teaching laboratories
  • College and university practical laboratories
  • Medical and paramedical education
  • Pathology training
  • Histology education
  • Microbiology practicals
  • Routine biological specimen observation
  • Student microscopy training
  • Laboratory demonstrations
  • Brightfield and darkfield microscopy training

Key Features :

  • Binocular observation head for comfortable two-eye viewing.
  • 30° inclined binocular tube for improved viewing ergonomics.
  • FN 20 wide field of view.
  • LED transmitted illumination with long operating life and low power consumption.
  • Supports Brightfield and Darkfield observation.
  • 4-position manual revolving nosepiece.
  • Plan Achromat objectives for flat-field imaging.

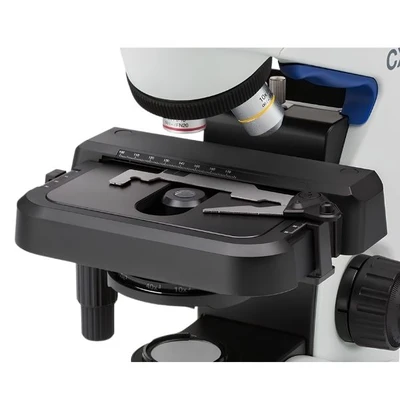

  • Mechanical stage with X/Y movement.
  • Coaxial coarse and fine focusing controls.
  • 15 mm focusing stroke.
  • Coarse adjustment limit stopper helps protect specimens and the microscope.
  • Adjustable interpupillary distance: 48–75 mm.
  • Adjustable eyepoint height for comfortable observation.
  • Ergonomic, anti-slip carrying handle.
  • Compact and lightweight design, approximately 5.9 kg for the binocular configuration.

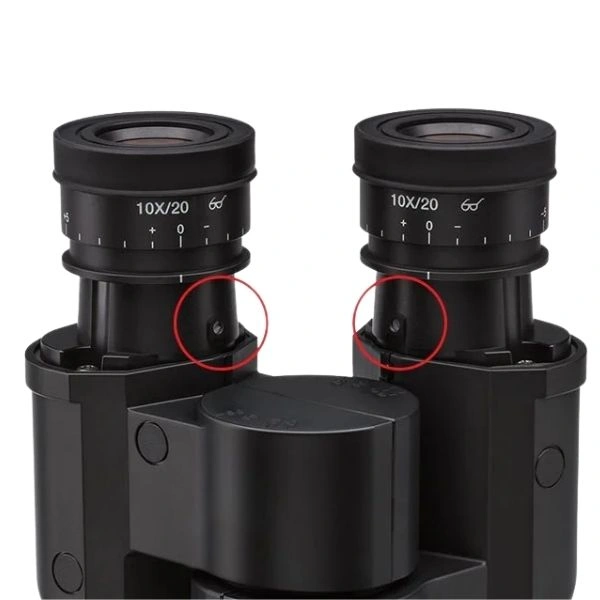

  • Objectives and eyepieces can be secured to help prevent damage or loss during transportation.

Warranty

1 Year

Product Description

The Olympus CX23 is an upright binocular biological microscope designed primarily for education, student training, laboratory practicals, and routine biological observation. It combines a compact, lightweight design with durable construction, ergonomic operation, and high-quality Olympus optics. The...
