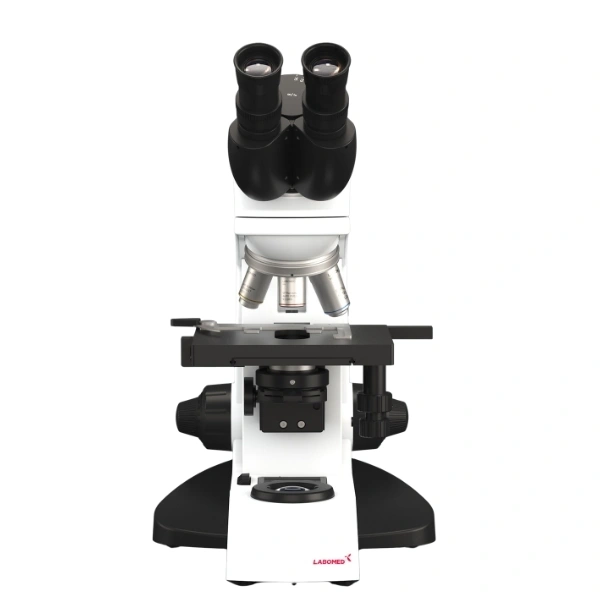

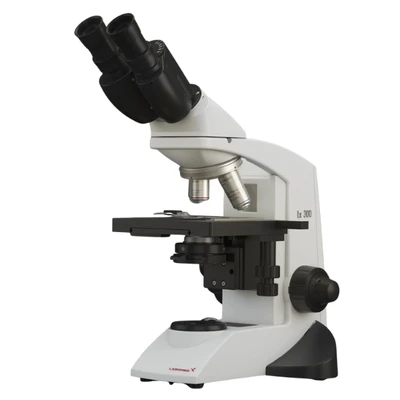

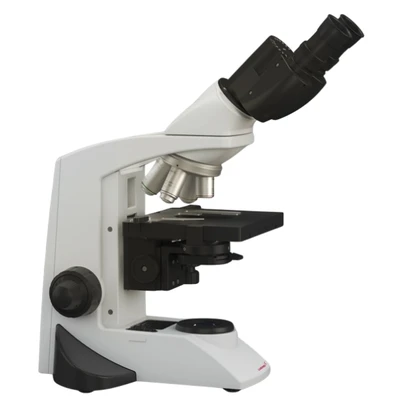

Labomed LX-300 Binocular Microscope

Name: Labomed LX-300 Binocular Microscope
Brand: Labomed
SKU: b69c7a3f-54c9-4254-a8bb-18ffe2e947f9
Price: 52000 INR
Availability: InStock

New

0.0|0 Ratings

₹52,000₹74,99931% off

Quantity :

Specifications

Microscope Type : Upright clinical/educational microscope
Viewing Head : Siedentopf Binocular / Butterfly style
Viewing Angle : 45° inclined
Head Rotation : 360° rotatable
Viewing Height Adjustment : Up to 40 mm
Interpupillary Distance : 48–75 mm
Eyepiece Wide-field : 10X / 18 mm
Eyepiece Features : Foldable eye guards, lockable, antifungal
Objective Type : EP2 Plan Achromat DIN Infinity
Objectives : 4X, 10X, 40X spring-loaded, 100X spring-loaded oil
Total Magnification : 40X, 100X, 400X, 1000X
Nosepiece : Reverse-angle quadruple nosepiece
Focusing : Coaxial coarse & fine focus
Focusing Mechanism : Ball-drive system
Mechanical Stage : Double plate
Stage Size : 150 × 135 mm
X-Y Travel : 75 × 40 mm
Stage Controls : Low-height controls
Specimen Holder : Double specimen holder
Condenser : Sub-stage Abbe
Condenser NA : 1.25
Condenser Lens : Aspheric
Diaphragm : Iris diaphragm
Filter : Blue daylight filter
Illumination : Intensity-controlled LED
LED Life : Up to 50,000 hours
Power Input : 100–240 V AC
Frequency : 50/60 Hz
Voltage Stabilization : Built-in voltage stabilizer
Stand : Single-mold sturdy stand
Stand Material/Design : Anti-rust materials; ergonomic base
Optional Digital Accessories : Digital cameras and adapters
Optional Accessories : Phase, polarizing, fluorescence, dark-field kits, auxiliary objectives/eyepieces, etc.

highlights

Binocular microscope with 45° inclined and 360° rotatable viewing head
Butterfly-style head with two distinct viewing positions
Infinity Corrected Plan Achromat optical system
Wide-field 10X / 18 mm eyepieces
Standard magnification range of 40X–1000X
4X, 10X, 40X and 100X oil immersion objectives
Coaxial coarse and fine focusing system
Smooth ball-drive focusing mechanism
Large 150 × 135 mm mechanical stage
75 × 40 mm X-Y stage travel
Abbe condenser with NA 1.25
Intensity-controlled LED illumination
LED service life of up to 50,000 hours
Built-in 100–240 V universal power supply
Antifungal treatment for eyepieces and objectives
Compatible with optional digital camera accessories
Suitable for education, pre-clinical training and routine laboratory microscopy

in the box

Microscope
Power cable – 6 ft
Cargille immersion oil
Spare bulb – specified for the 20 W version
Nylon dust cover
Cleaning cloth
Styrofoam casing

Use Cases :

Educational microscopy
Medical and clinical laboratory training
Pre-clinical education
Biological specimen examination
Routine laboratory microscopy
Histological and pathological specimen observation
Research and laboratory applications
Digital microscopy/documentation, when an optional camera and adapter are fitted.

Key Features :

Binocular viewing head with 45° inclination and 360° rotation.
Butterfly-style binocular head provides two distinct viewing positions for different user heights.
Adjustable interpupillary distance of 48–75 mm.
EP2 Infinity Corrected Plan Achromat objectives for clear and accurate imaging.
Standard objectives: 4X, 10X, 40X and 100X oil immersion.
Coaxial coarse and fine focusing with ball-drive mechanism.
Double-plate mechanical stage with low-height controls.
75 × 40 mm X-Y travel for specimen positioning.
Sub-stage Abbe condenser, NA 1.25, with aspheric lens and iris diaphragm.
Intensity-controlled LED illumination.
Universal 100–240 V AC, 50/60 Hz input with built-in voltage stabilizer.
Antifungal eyepiece and objectives.
Reverse-angle quadruple nosepiece with click stops and rubber grip.
Digital cameras and other accessories can be added to the optical system.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The Labomed Lx 300 is an upright binocular microscope designed for educational, laboratory, pre-clinical and clinical microscopy applications. It combines a sturdy ergonomic stand with a 45° inclined, 360° rotatable binocular viewing head, Infinity Corrected Plan Achromat objectives, LED illuminatio...
