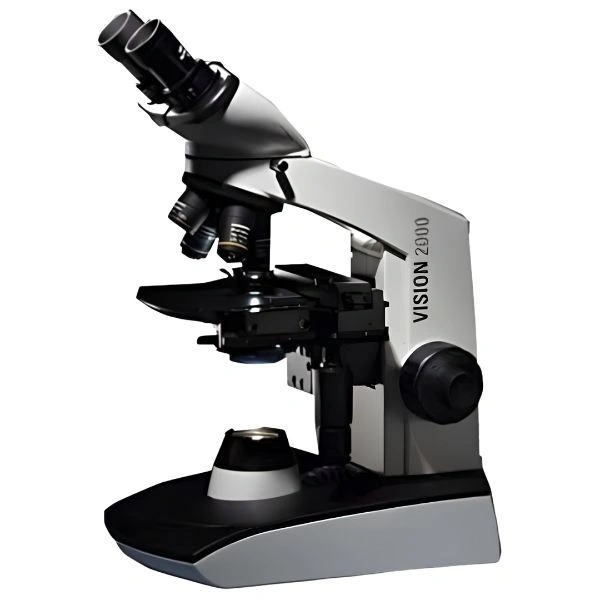

Labomed Vision 2000 Binocular Microscope

Name: Labomed Vision 2000 Binocular Microscope
Brand: LABOMED
SKU: aaa803ed-0b60-4e4b-8c15-6489cbe33815

New

0.0|0 Ratings

Quantity :

Specifications

Model : Vision 2000
Type : Binocular Educational/Laboratory Microscope
Viewing Body : Binocular tube
Viewing Angle : 45° inclined
Viewing Head Rotation : 360° rotatable
Interpupillary Distance : 54–74 mm
Eyepieces : Wide Field 10×/18 mm
Eye Guard : Foldable
Optical Treatment : Anti-fungal
Nosepiece : Quadruple revolving
Nosepiece Mechanism : Ball-bearing guideways with rubber grip
Objectives : DIN Semi-Plan Achromatic 4×, 10×, 40× spring-loaded, 100× spring-loaded oil
Stage : Mechanical stage
Stage Control : Low-drive coaxial control
Stage Surface : Approx. 135 × 124 mm
Condenser : Sub-stage Abbe condenser
Condenser NA : 1.25
Condenser Features : Aspheric lens, iris diaphragm, snap-in blue filter
Focusing Coaxial coarse and fine
Focusing Mechanism : Ball-bearing guideways
Fine Adjustment : Tension adjustment and focusing stop
Illumination : Halogen
Lamp : 6 V / 20 W
Illumination Control : Variable electronic regulator
Electrical Input : 220–240 V AC
Compliance : CE approved
Accessories : Dust cover, daylight mirror
Optional Accessories : Phase contrast, polarizing, dark-field kits

highlights

Binocular viewing head with comfortable observation
45° inclined and 360° rotatable head
Wide-field 10× eyepieces
Quadruple revolving nosepiece
Semi-plan achromatic objectives
Mechanical stage with coaxial controls
Abbe condenser with iris diaphragm
Coaxial coarse and fine focusing
Anti-fungal optical treatment
Halogen illumination with variable intensity control

in the box

Vision 2000 binocular microscope
WF 10×/18 mm binocular eyepiece pair
4× objective
10× objective
40× spring-loaded objective
100× spring-loaded oil-immersion objective
Abbe condenser with iris diaphragm
Snap-in blue filter
Dust cover
Day-light mirror
Power cord

Use Cases :

Educational laboratories
College and university laboratories
Clinical laboratory applications
Pathology laboratories
Microbiology applications
Routine biological specimen observation
Teaching and practical microscopy
General laboratory research/observation

Key Features :

Binocular viewing head with 45° inclination and 360° rotation.
Wide-field 10×/18 mm eyepieces with foldable eye guards.
Anti-fungal treatment on optical components.
Quadruple revolving nosepiece with ball-bearing guideways and rubber grip.
Semi-plan achromatic objectives: 4×, 10×, 40× spring-loaded and 100× spring-loaded oil immersion.
Mechanical stage with smooth, low-drive coaxial controls.
Abbe condenser, NA 1.25, with iris diaphragm and snap-in blue filter.
Coaxial coarse and fine focusing mechanism.
Ball-bearing guideways for smooth focusing and mechanical movement.
6 V/20 W halogen illumination with variable electronic regulator in the standard configuration.
Detachable power cord and ergonomic hand-rest design.
Optional accessories are available for phase contrast, polarization and dark-field microscopy.

Warranty

Seller

AA MEDIE QUIPLearn More

Product Description

The LABOMED Vision 2000 is a binocular laboratory/educational microscope designed for routine microscopic observation in laboratories, colleges and educational institutions. It features a 45° inclined, 360° rotatable binocular viewing head, wide-field 10× eyepieces, semi-plan achromatic objectives, ...
