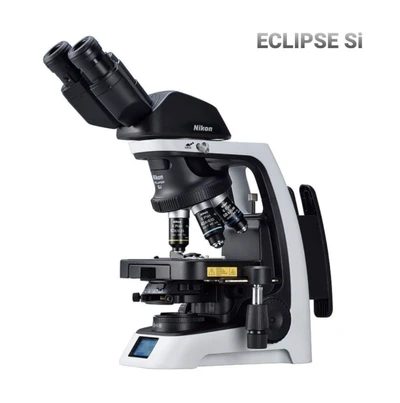

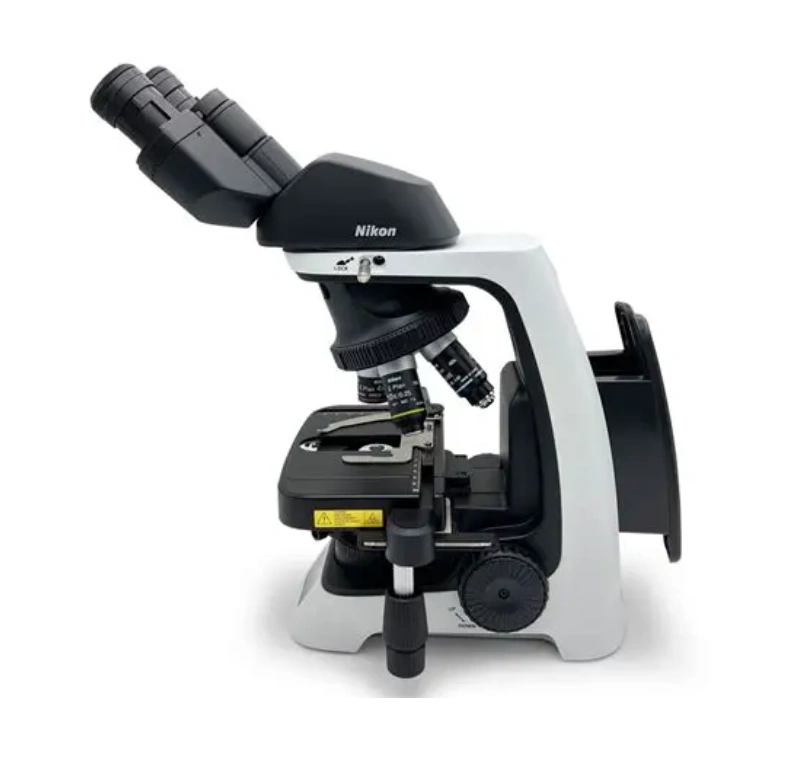

Nikon ECLIPSE Si Microscope
New₹1,89,999
Specifications
- Optical System: CFI60 Infinity Optical System
- Illumination: High-luminescent white LED, Eco-illumination, fly-eye lens, up to two 45 mm filters
- Light Management: LIM feature for automatic brightness adjustment
- Eyepieces: E2-CFI 10X (FOV 20 mm), optional CFI 10X (FOV 22 mm), CFI 12.5X, CFI 15X
- Focusing: Coaxial coarse/fine focus, stroke: Up 2 mm / Down 13 mm, fine: 0.2 mm per rotation
- Nosepiece: Reversed-type quintuple nosepiece
- Stage: Rectangular mechanical stage, cross travel: 76 mm (X) × 52 mm (Y)
- Objectives: CFI E Plan Achromat: 4X (NA 0.1), 10X (NA 0.25), 40X (NA 0.65), 60X (NA 0.8), 100X Oil (NA 1.25)
- Condenser: Abbe condenser, NA 1.25, vertically movable and centerable
- Observation Methods: Brightfield, phase contrast, diascopic fluorescence, dark-field, simple polarizing
- Power Supply: AC adapter (100–240 VAC, 50/60 Hz), output: 5 VDC, 3.0A Max
- Power Consumption: 5 W (nominal)
- Weight: Approx. 6.0 kg (binocular), 6.4 kg (trinocular)
highlights
- Type: Upright Microscope
- Optical System: CFI60 Infinity Optical System
- Illumination: High-luminescent white LED with fly-eye lens, Eco mode
Use Cases
- Medical & Clinical Labs: High-quality imaging for pathology and diagnostics.
- Research Facilities: Advanced optical performance for detailed specimen analysis.
- Universities & Schools: Ideal for teaching and practical training.
- Remote Learning: Digital camera integration for virtual classes and seminars.
Applications
- Clinical and research laboratories
- Educational institutions
- Online teaching and collaborative observation
Special Features
- Light Intensity Management (LIM) for automatic brightness adjustment
- Ergonomic design with low stage and 45° eyepiece inclination
- Coaxial coarse/fine focus knobs on both sides
- ECO mode for power saving
Digital Integration
- Compatible with Digital Sight 1000 and DS-Fi3 cameras
- Real-time image sharing via NIS-Elements L software
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The Nikon ECLIPSE Si Upright Microscope is a premium optical instrument designed for professional and educational environments. Built with ergonomic design, advanced optical technology, and intelligent workflow features, it ensures comfort during prolonged use while delivering superior image quality...
