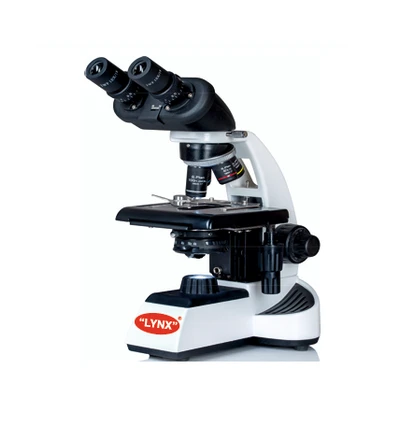

Lawrence & Mayo LYNX LM-52-1710E Microscope
New₹40,000
Specifications
- Optical System: High Contrast Finite Plan Color Corrected
- Stand: Ergonomic, anti-rust, extended base with hand rest
- Magnification: 40x to 1000x
- Viewing Head: 360° rotatable, 30° sliding binocular head
- Eyepieces: Wide field 10x/18 mm, anti-reflection & antifungal coatings
- Nosepiece: Inward revolving quadruple (ball bearing type) with click stops
- Mechanical Stage: 142 × 133 mm, X/Y travel: 80 × 60 mm, ceramic coated, dual clips
- Objectives: Plan 4x, 10x, 40x (spring), 100x oil (spring), antifungal & hard coated
- Condenser: Abbe NA 1.25 with aspheric lens, iris diaphragm, frosted filters
- Focusing: Coaxial coarse & fine, fine scale: 0.002 mm
- Illumination: Koehler Q-LED 3.5W, 3V LED, 100,000 hr life, variable control, battery backup
- Electronics: Universal input 110V–240V, SMPS circuit for flicker-free illumination
- Package Contents: Power cable (5 ft), dust cover, cleaning cloth, manual, styrofoam casing
- Optional Accessories: Mono/Trino head, DIN Plan objectives (20X, 60X), WF 15X/20X, pointers, micrometer
- Additional Accessories: Reticule, phase contrast, polarizing, fluorescence, dark field, USB cameras (1.3MP–14MP), DSLR adapters
- Certifications: ISO 9001:2015, ISO 13485:2016, IEC 61010-1, CE, GEM
highlights
- Type: Binocular Laboratory Microscope
- Magnification: 40x to 1000x
- Optical System: High Contrast Finite Plan Color Corrected
- Illumination: Koehler Q-LED 3.5W, 3V LED with variable control and battery backup
- Warranty: 1 Year
- Certifications: ISO 9001:2015, ISO 13485:2016, IEC 61010-1, CE, GEM
Use Cases
- Educational Institutions: Ideal for biology and life science practicals.
- Clinical Laboratories: For routine sample observation and analysis.
- Research Facilities: Suitable for advanced studies requiring high-resolution imaging.
- Field Work: Battery backup feature ensures portability and uninterrupted use.
Applications
- Classroom demonstrations
- Online education and virtual labs
- Group observations and seminars
Warranty
Seller
AA MEDIE QUIPLearn More
Product Description
The LYNX LM-52-1710E Laboratory Microscope is a high-performance optical instrument designed for professional and educational use. Featuring a high-contrast finite plan color-corrected optical system, this microscope delivers sharp, clear images across a magnification range of 40x to 1000x. Its ergo...
