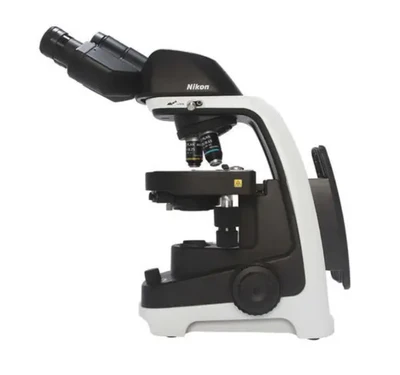

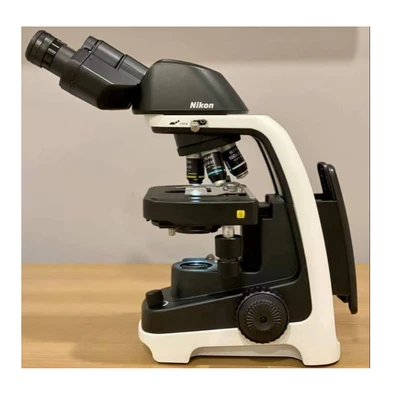

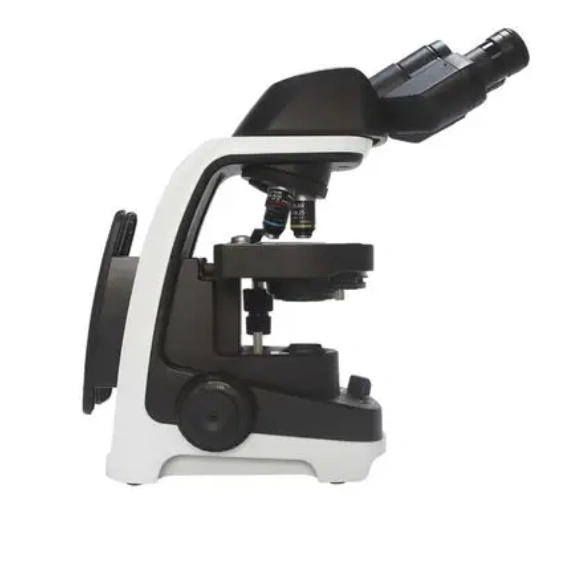

Nikon ECLIPSE Ei Microscope

Name: Nikon ECLIPSE Ei Microscope
Brand: Nikon
SKU: 6e7f5c19-5dda-41b9-a5c5-d3fa63e816a8
Price: 165000 INR
Availability: InStock
Rating: 4.3 (35 reviews)

New

4.3|35 Ratings

₹1,65,000

Quantity :

Specifications

Optical System : CFI Infinity Optical System
Illumination : High-luminescent white LED, supports 45 mm filter
Eyepieces : EC-E CFI 10X (FOV 20 mm), optional E2-CFI 15X (FOV 12 mm)
Focusing Mechanism : Coaxial coarse/fine focus, torque adjustment, stroke: Up 2 mm / Down 13 mm
Nosepiece : Reversed-type quadruple nosepiece
Stage : Rectangular mechanical stage, cross travel: 76 mm (X) × 30 mm (Y)
Objectives : CFI BE2 Plan Achromat: 4X (NA 0.1), 10X (NA 0.25), 20X (NA 0.4), 40X (NA 0.65), 60X (NA 0.8), 100X Oil (NA 1.25)* (*optional)
Condenser : Abbe condenser, NA 0.1–1.25, color-coded aperture guide
Observation Method : Brightfield
Power Supply : AC adapter (Input: 100–240 VAC, Output: 5 VDC, 3.0A Max)
Power Consumption : 4 W (nominal)
Weight : Approx. 5.2 kg (binocular), 5.5 kg (trinocular)
Optional Accessories : Digital Sight 1000 camera, eyepiece pointer, objective micrometer, filters

highlights

Type: Educational Microscope
Optical System: CFI Infinity Optical System
Illumination: High-luminescent white LED with fly-eye lens for uniform brightness

Use Cases

Schools & Colleges: For biology and life science practical sessions.
Online Education: Real-time sharing of specimen images via web conferencing.
Research Training: Ideal for introductory microscopy courses.
Seminars & Group Learning: Display live images on monitors for collaborative learning.

Applications

Classroom demonstrations
Online education and virtual labs
Group observations and seminars

Design Highlights:

Lightweight and portable (approx. 5.2–5.5 kg)
Integrated cord winding system for easy storage
Rotatable tube for space-saving storage
Coarse/fine focus knobs on both sides for easy operation

Digital Integration:

Smartphone-accessible Online Guide via QR code
Optional Digital Sight 1000 Camera for image/video capture and online teaching

Warranty

1 Year

Seller

AA Medie QuipLearn More

Product Description

The Nikon ECLIPSE Ei Microscope is an educational microscope designed to make routine microscopic observation simple, comfortable, and easy to learn. It combines Nikon's CFI infinity optical system, high-luminescence white LED illumination, intuitive controls, and a compact design for educational an...
