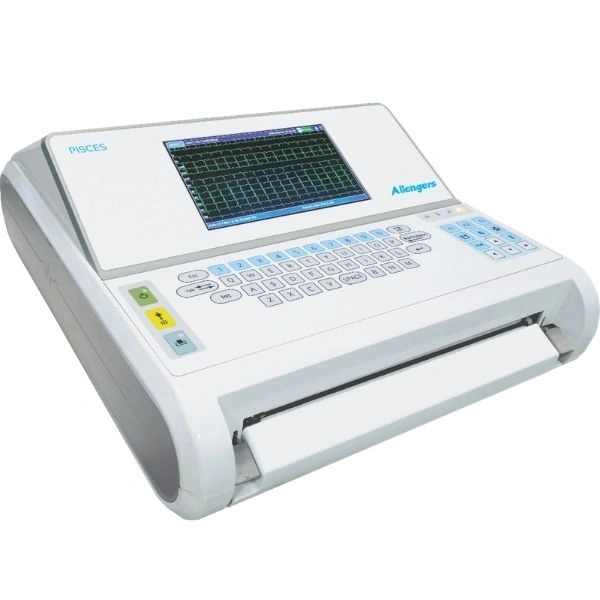

Allengers Pisces 12-Channel Electrocardiograph ECG Machine

New

0.0|0 Ratings

₹86,999₹1,115,00092% off

Quantity :

Specifications

Product Name : Allengers Pisces 12-Channel ECG
ECG Channels : 12 Channel
Lead System : Standard 10 Lead
Acquisition Mode : Simultaneous 12-Lead Acquisition
Display : 7-inch Color Touchscreen TFT
Recording Modes : Auto / Manual / Rhythm
Interpretation : On-Screen Full Interpretation
Storage Capacity : Up to 2000 Patient Records
Data Export : USB Export, PDF Generation
Printer Type : A4 Thermal Printer
Paper Type : A4 Size Z-Fold (210 mm)
External Printer Support : Yes (USB)
Keyboard : Full Alphanumeric Keyboard
Battery Backup : Up to 100 ECG Records per Charge
Connectivity : USB
Software Upgrade : Via USB Pen Drive
Dimensions (W × L × H) : 355 × 390 × 155 mm
Weight : Approx. 5.6 kg
Power Supply : 110–270V AC, 50/60 Hz
Portability : Carry Handle Integrated
Indicators : Battery Status, Lead Off, Paper Empty, Charging Status
Printing Speeds : 12.5, 25, 50 mm/sec
Sensitivity : 2.5, 5, 10, 20 mm/mV, Auto
Filters : Low Pass, Baseline Drift, Notch, High Pass Filters
Defibrillation Protection : Built-in

highlights

Simultaneous acquisition of all 12 ECG leads
Advanced ECG interpretation with on-screen preview
Large memory for 2000 patient records
PDF report generation and data export
A4-format thermal ECG printing
External printer connectivity
Portable and lightweight construction
Lifetime online support and software upgrades
Rechargeable battery for mobile operation
User-friendly touchscreen interface

in the box

Allengers Pisces 12-Channel ECG Machine
Patient Cable (10 Lead ECG Cable)
Limb Electrodes
Chest Electrodes
Power Cord
Rechargeable Battery (installed)
ECG Recording Paper (model dependent)
User Manual
Carry Handle Integrated Unit

Use Cases :

Routine cardiac examinations
Cardiology departments
Intensive Care Units (ICUs)
Emergency departments
General hospitals
Multi-specialty clinics
Diagnostic and cardiac care centers
Pre-operative cardiac assessment
Cardiac rhythm monitoring and arrhythmia detection

Key Features :

12-channel ECG with simultaneous 12-lead acquisition
7-inch color touchscreen display
On-screen ECG interpretation
Analysis of conduction abnormalities, hypertrophy, ischemia, infarction, and basic arrhythmias
Storage capacity for up to 2000 patient ECG records
ECG raw data export and PDF generation
USB connectivity for data transfer
External USB printer support
Auto, Manual, and Rhythm recording modes
A4-size thermal printer with Z-fold paper compatibility
Full alphanumeric keyboard with shortcut keys
Field software upgrades through USB pen drive
Portable design with carry handle
Battery operation with up to 100 ECG printouts per full charge
Multiple print formats and display options

Warranty

1 Year

Seller

AA MEDIE QUIPLearn More

Product Description

The Allengers Pisces 12-Channel ECG Machine is a digital electrocardiograph designed for recording standard 12-lead resting ECGs. It features simultaneous 12-lead acquisition, a 7-inch color touchscreen, on-screen ECG interpretation, large patient data storage, and A4-size thermal printing. The syst...
